Last modified 2014-09-14

RM Italy LPS-112S

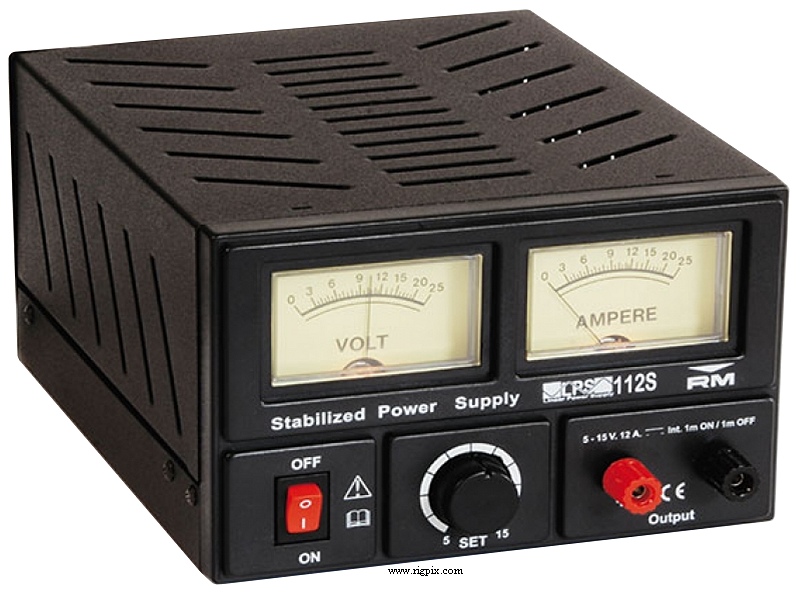

A picture of RM Italy LPS-112S
Type:Linear regulated power supply
Output voltage:5-15 VDC
Output current:9 A (12 A peak)
Ripple:5 mV
Voltage fluctuation:Max ?% of input voltage
Efficiency:?%
Dimensions (W*H*D):170*115*257 mm (6.7*4.53*10.1")
Weight:4.2 Kg (9.26 lbs)
Manufactured:20xx-20xx
Other:Short circuit protected.
V/A meters
Related documents:
