Optoelectronics OptoCom

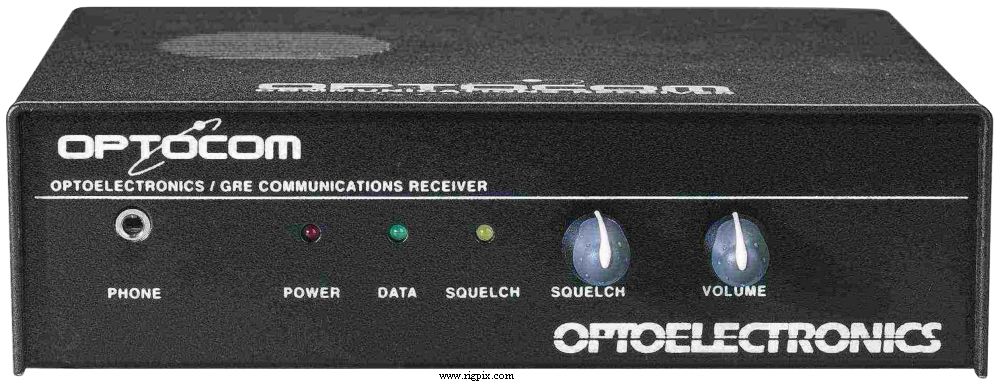

A picture of Optoelectronics OptoCom

SPECIFICATIONS

GENERAL
Type:HF/VHF/UHF "black box" receiver/scanner
Frequency range: 25-520 / 760-824 / 849-869 / 894-1300 MHz
Tuning steps:? KHz
Frequency stability:? ppm
Mode:AM / FM / WFM
Channels / memory management: 100 internal for standalone use without computer.
Unlimited, depending on software when under computer control.
Power supply:12 VDC
Current drain / power consumption:? mA
Antenna impedance / connector:50 ohm / BNC
Dimensions (W*H*D):165*51*165 mm (6.5*2*6.5")
Weight:907 g (2 lb)
Other features: CTCSS/PL, DCS and DTMF decoder. Trunktracking. RS-232C and CI-V.
10 dB attenuator. Discriminator output. Built-in data slicer (except for the
very first production run)




RECEIVER SECTION
Receiver system: Triple conversion superheterodyne
1st IF: ? MHz
2nd IF: ? MHz
3rd IF: ? KHz
Sensitivity: AM (20 dB S/N)
25-520 MHz: 2 uV
760-1000 MHz: 2 uV
1000-1300 MHz: 5 uV
FM (20 dB S/N)
25-520 MHz: 0.5 uV
760-1000 MHz: 0.5 uV
1000-1300 MHz: 3 uV
WFM (12 dB SINAD)
25-520 MHz: 3 uV
760-1000 MHz: 3 uV
1000-1300 MHz: 10 uV
Selectivity: AM:
12 KHz (-6 dB)
24 KHz (-60 dB)
FM:
20 KHz (-6 dB)
40 KHz (-60 dB)
WFM:
300 KHz (-6 dB)
600 KHz (-60 dB)
Selectivity:
Image rejection:
AF output power / speaker:1.3 W at 10% distortion / ? ohm
External speaker connector:3.5 mm




MISCELLANEOUS
Manufactured:Japan (By GRE), 1998-200x (Discontinued)
Additional info: New price 1998 in the US: $459.00
Related documents: User manual (1.2 MB)
Serial interface specification (223 KB)
Modifications and fixes:
Reviews:
Options / Accessories:
AC90
TA100S
AC adapter
Telescoping whip
An inside picture of Optoelectronics OptoCom
A rear picture of Optoelectronics OptoCom
