Allied A-2509

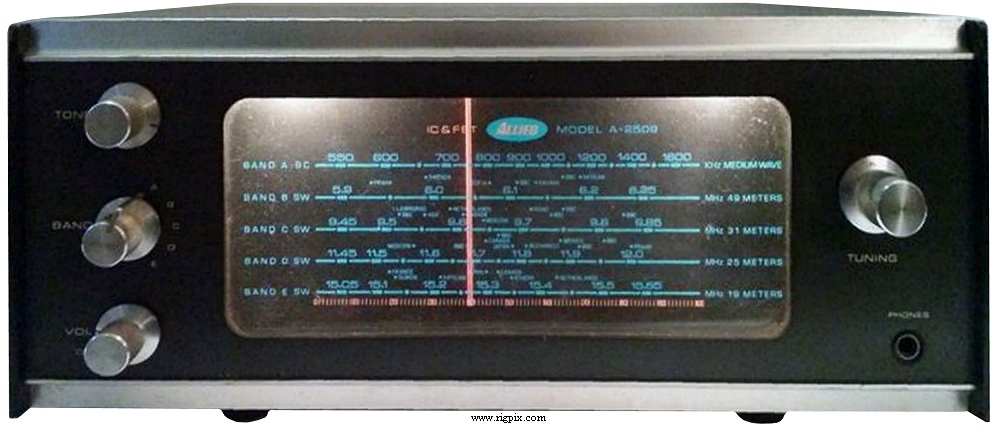

A picture of Allied A-2509

SPECIFICATIONS

GENERAL
Type:HF/VHF receiver
Frequency range:0.55-1.6 MHz (MW band)
5.9-6.25 MHz (49 m band)
9.45-9.85 MHz (31 m band)
11.45-12 MHz (25 m band)
15.05-15.55 MHz (19 m band)
Tuning steps:Continuous
Mode:AM
Channels/memory management:No
Power supply:12 VDC or mains: 117 VAC
Current drain/power consumption:? mA
Antenna impedance/connector:50 ohms / Screw terminals
Dimensions (W*H*D):325*121*222 mm (12*4.75*8.75")
Weight:4 Kg (9 lbs)
Other features:Tone control




RECEIVER SECTION
Receiver system:Single conversion superheterodyne
IF: ? MHz
Sensitivity:
Selectivity:
Image rejection:
AF output power/speaker:? W at ?% distortion / ? ohms
External speaker connector:




MISCELLANEOUS
Manufactured:Japan, 1971-1971 (Discontinued)
Additional info:
Related documents:
Modifications:
Options/Accessories:
- -
