NEC CQ-110E

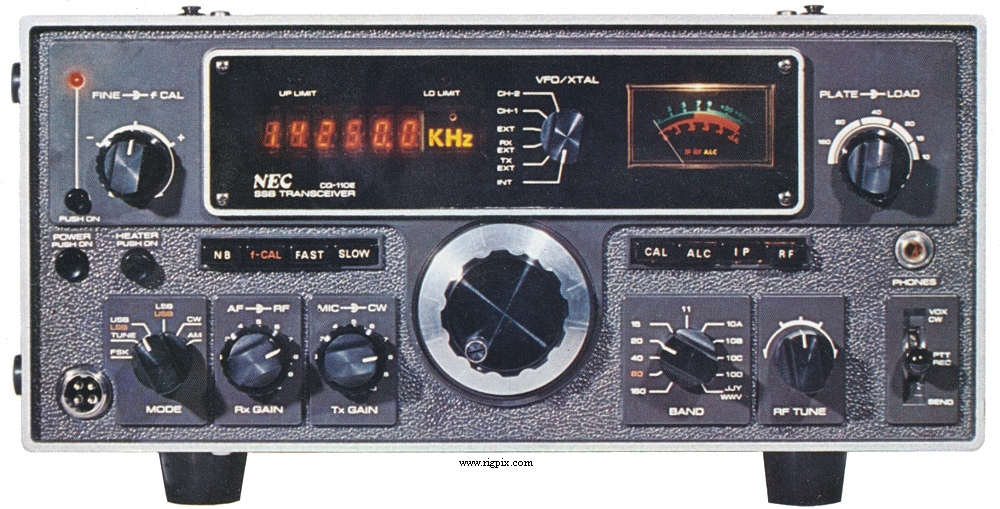

A picture of NEC CQ-110E

SPECIFICATIONS

GENERAL
Type:Amateur HF transceiver
Frequency range: TX: 10-160 m + 11 m
RX: 10-160 m + 11 m
Tuning steps:Analog / continuous
Frequency stability:±? ppm
Mode:AM / SSB / CW / FSK
Channels / memory management: 2 optional
XTAL controlled
Repeater shift / offset:No
Power supply:Mains or 13.5 VDC
Current drain / power consumption:RX: Max 320 mA @ 13.5 VDC
TX: Max 25 A @ 13.5 VDC
Antenna impedance / connector:50 ohm / SO-239
Dimensions (W*H*D):334*153*322 mm (13.15*6.02*12.68")
Weight:18 Kg (39.68 lb)
Other features:




RECEIVER SECTION
Receiver system: ? conversion superheterodyne
Sensitivity:
Selectivity:
Image rejection:
AF output power / speaker:? W at ?% distortion / ? ohm
External speaker connector:




TRANSMITTER SECTION
RF output power:

Max Pwr
AM:40+ W
SSB (PEP):100+ W (200 W input)
CW/FSK:100+ W (200 W input)
Modulation system:
Max FM deviation (Factory set):±? KHz
Spurious emissions:Better than -? dB
Microphone impedance / connector:? ohm / 4-pin (Metal locking ring connector)
Microphone input level:? mV




MISCELLANEOUS
Manufactured:Japan, 197x-197x (Discontinued)
Additional info:
Related documents:
Modifications and fixes:
Reviews:
Options / Accessories:
- -
A rear picture of NEC CQ-110E
