| GENERAL |
| Type: | Amateur VHF transceiver |
| Frequency range: |
USA & Canada
TX: 144-148 MHz
RX: 136-174 MHz
|
| Tuning steps: | 2.5 / 5 / 6.25 / 10 / 12.5 / 15 / 20 / 25 / 30 / 50 / 100 KHz |
| Frequency stability: | ±2.5 ppm @ -20 to +60°C (-4 to +140°F) |
| Mode: | FM / FMN |
| Channels / memory management: |
200 regular (100 if used with alpha tags - up to six characters)
1 call
Non volatile EEPROM storage
|
| Repeater shift / offset: | ±600 KHz (0 to 69.95 MHz selectable) |
| Power supply: | 13.8 VDC ±15% |
| Current drain / power consumption: | RX: Max 1 A
TX: Max 13 A |

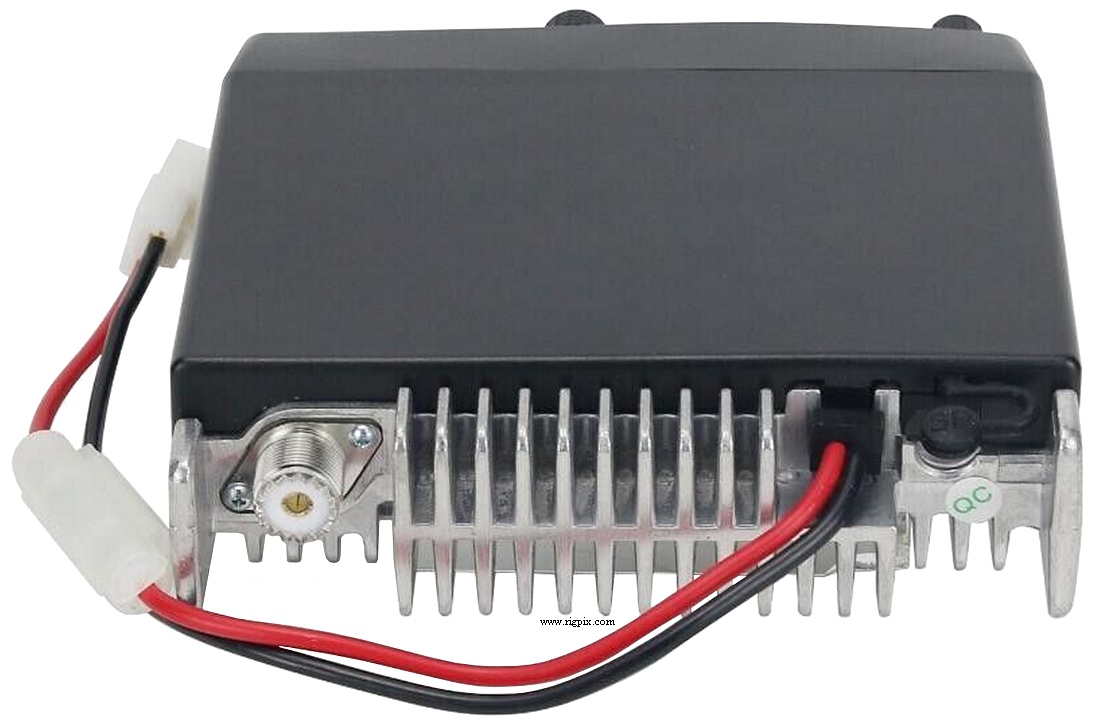

| Antenna impedance / connector: | 50 ohm / SO-239 |
| Dimensions (W*H*D): | 161*43*169 mm (6.33*1.69*6.65") |
| Weight: | 1.2 Kg (2.6 lb) |
| Other features: |
CTCSS/PL and DCS with tone scan. 1750 Hz repeater tone.
NOAA weather channels with tone alert. |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: 49.95 MHz
2nd IF: 450 KHz
|
| Sensitivity: |
FM: 0.18 uV (12 dB SINAD)
FMN: 0.22 uV (12 dB SINAD)
|
| Squelch sensitivity: | 0.1 uV (Treshold) |
| Selectivity: |
FM
12 KHz (-6 dB)
30 KHz (-60 dB)
FMN
10 KHz (-6 dB)
24 KHz (-60 dB)
|
| Image rejection: | |
| AF output power / speaker: | 2 W at 5% distortion / 8 ohm |
| External speaker connector: | TS "Minijack" (3.5 mm), 8 ohm |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
|
| Modulation system: | Reactance modulation |
| Max FM deviation (Factory set): | FM: ±5 KHz
FMN: ±2.5 KHz |
| Spurious emissions: | Better than -? dB |
| Microphone impedance / connector: | 600 ohm / 8-pin (Modular) |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | 2003-20xx (Discontinued) |
| Additional info: | |
| Related documents: |
User manual (2 MB)
Service manual (1.6 MB)
|
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
KMC-30
KMC-32
KPS-15
MC-60A
MCP-1A
MJ-88
PG-2N
PG-3B
PS-33
PS-53
SP-50B
|
Hand microphone
Hand microphone with DTMF keypad
Power supply. 13.8 VDC, 23 A
Desk microphone (MJ-88 required)
Memory control software
Microphone plug adapter
DC power cable
DC line noise filter
Power supply. 13.8 VDC, 20.5 A
Power supply. 13.8 VDC, 22.5 A
External speaker
|
|
