| GENERAL |

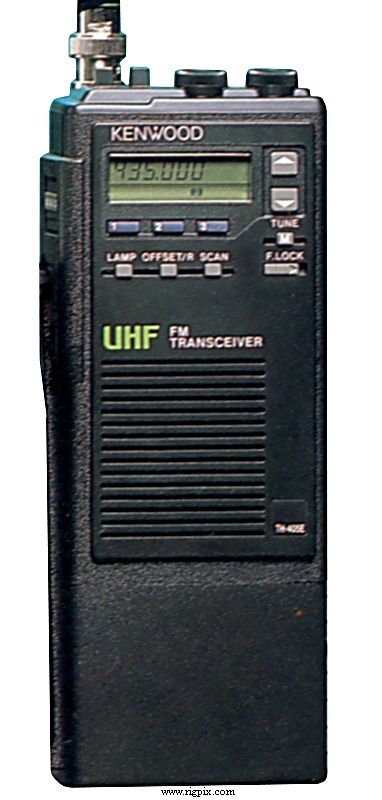

| Type: | Amateur UHF transceiver |
Frequency range
depending on version: |
Europe
TX: 430-440 MHz
RX: 430-440 MHz
|
| Tuning steps: | 5 KHz |
| Frequency stability: | ±? ppm |
| Mode: | FM |
| Channels / memory management: |
3 regular
RAM storage with lithium battery backup
|
| Repeater shift / offset: | ±? MHz |
| Power supply: | 6.3-12 VDC (Depending on battery pack)
or 7.2-16 VDC external |
| Current drain / power consumption: | RX: 55 mA (Squelched)
TX: 0.9-2 A |
| Antenna impedance / connector: | 50 ohm / BNC |
| Dimensions (W*H*D): | 67*173*37 mm (2.64*6.81*1.46") |
| Weight: | 540 g (1.15 lb), with PB-2 and antenna |
| Other features: | 1750 Hz tone call. |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: 30.825 MHz
2nd IF: 455 KHz
|
| Sensitivity: | 0.25 uV (12 dB SINAD) |
| Selectivity: | 12 KHz (-6 dB)
28 KHz (-40 dB) |
| Image rejection: | |
| AF output power / speaker: | 350 mW at 10% distortion / 8 ohm |
| External speaker connector: | 2.5 mm |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
| High | Low |
|---|
| 70 cm: | 1-5 W | 500 mW |
The high power setting depends on voltage / battery pack.
|
| Modulation system: | Reactance |
| Max FM deviation (Factory set): | ±5 KHz |
| Spurious emissions: | Better than -60 dB |
| Microphone impedance / connector: | ? ohm / 3-conductor (3.5 mm) |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Japan, 1986-1987 (Discontinued) |
| Additional info: | |
| Related documents: | User manual (7.2 MB) |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
BC-2
BC-7
BC-8
BH-5
BT-5
HS-7
HS-8
MB-4
PB-1
PB-2
PB-3
PB-4
PG-2V
PG-3C
SC-12
SC-13
SMC-30
|
Battery charger. For PB-2 only
Rapid charger. For PB-1, PB-2, PB-3 and PB-4
Compact charger. For PB-1, PB-2, PB-3 and PB-4
Swivel hook
Battery case
Ultra-light headphones
Micro headphone
Mobile bracket
NiCd battery pack. 12 V, 800 mAh
NiCd battery pack. 8.4 V, 500 mAh
NiCd battery pack. 7.2 V, 800 mAh
NiCd battery pack. 7.2 V, 1600 mAh
DC cable
Cigarette lighter power cable
Softcase
Softcase, for use with PB-1 and PB-4
Speaker-microphone
|
|
