| GENERAL |

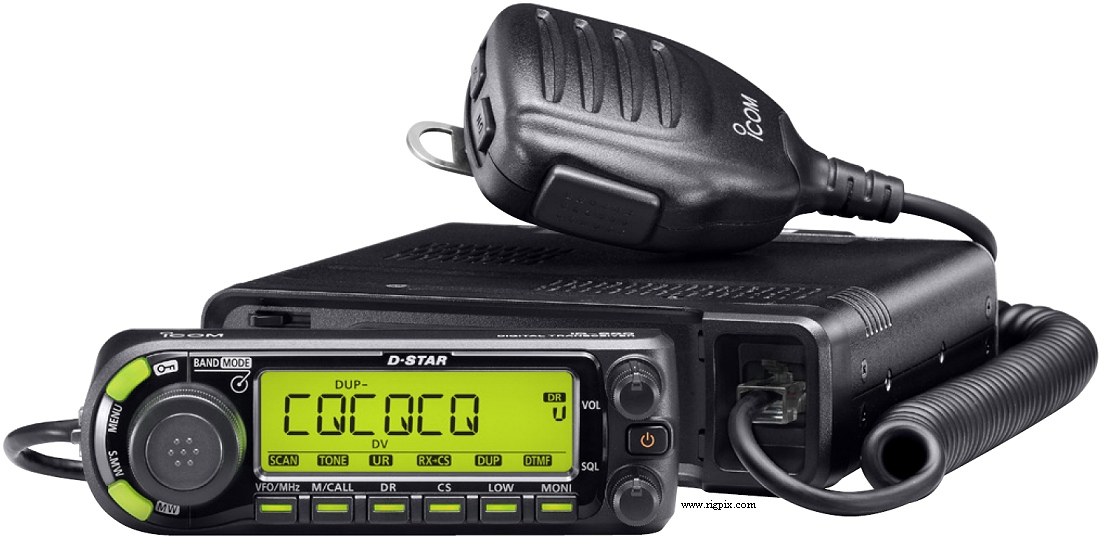

| Type: | Amateur VHF/UHF transceiver |
| Frequency range: |
Japanese domestic market
TX: 144-146 / 430-440 MHz
RX: 118-174 / 230-550 / 834.1-1000 MHz
|
| Tuning steps: | 5 / 6.25 / 8.33 / 10 / 12.5 / 15 / 20 / 25 / 30 / 50 / 100 / 125 / 200 KHz |
| Frequency stability: | ±2.5 ppm @ -10 to +60°C (14 to 140°F) |
| Mode: | TX: FM / NFM and DV (D-Star)
RX: AM / NAM / FM / NFM and DV (D-Star) |
| Channels / memory management: |
1000 regular with alpha tags
25 scan edge pairs
2 call
Priority watch
Non-volatile EEPROM storage
|
| Repeater shift / offset: | ±0 to 159.995 |
| Power supply: | 13.8 VDC ±15% |
| Current drain / power consumption: | RX: 0.9 to 1.2 A
TX: 5 to 12.5 A |
| Antenna impedance / connector: | 50 ohm / ? |
| Dimensions (W*H*D): | 150*40*199 mm (5.9*1.57*7.83") |
| Weight: | 1.3 Kg (2.87 lb) |
| Other features: |
CTCSS/PL with tone scan. DTCS & DTMF Detachable control head. Attenuator.
1200/9600 bd packet jack. Multi color backlight. Dimmer. GPS option.
|
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: 46.35 MHz
2nd IF: 450 KHz
|
| Sensitivity: |
2 m/70 cm FM: 0.18 uV (12 dB SINAD)
2 m/70 cm DV: 0.35 uV (BER 1%)
|
| Selectivity: |
FM
10 KHz (-6 dB)
30 KHz (-60 dB)
NFM
6 KHz (-6 dB)
20 KHz (-60 dB)
|
| Image rejection: | |
| AF output power / speaker: | 2 W at 10% distortion / 8 ohm |
| External speaker connector: | 3.5 mm, 8 ohm |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
| High | Mid | Low |
|---|
| 2 m: | 50 W | 15 W | 5 W |
| 70 cm: | 50 W | 15 W | 5 W |
|
| Modulation system: |
FM: Variable reactance frequency modulation
DV: GMSK
|
| Max FM deviation (Factory set): | FM: ±5 KHz
NFM: ±2.5 KHz |
| Spurious emissions: | Better than -60 dB |
| Microphone impedance/connector: | 600 ohm / 8-pin (Modular) |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Japan, 2009-201x (Discontinued) |
| Additional info: | |
| Related documents: | |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
CS-80/880
HM-103
HM-133J
HM-154
MB-120
OPC-347
OPC-440
OPC-441
OPC-474
OPC-478
OPC-478UC
OPC-589
OPC-647
OPC-1132
OPC-1154A
OPC-1529
SP-10
|
Cloning software
Hand microphone
Remote control hand microphone
Hand microphone
Control head mounting base
DC power cable, 20 A. 7 m (23 ft)
Mic extension cable. 5 m (16.4 ft)
Speaker extension cable. 5 m (16.4 ft)
Cloning cable (Radio-to-radio)
Cloning cable, RS232C (Radio-to-PC)
Cloning cable, USB (Radio-to-PC)
Microphone adapter cable
Mic extension cable. 2.5 m (8.2 ft)
DC power cable, 20 A. 3 m (9.8 ft)
Separation cable. 3.4 m (11.2 ft)
Data communication cable, RS232C
External speaker
|
|
