| GENERAL |
| Type: | HF/VHF/UHF receiver/scanner |
| Frequency range: |
Band A: 0.1-3305 MHz
Band B: 108-520 MHz
(Cellular blocked in the US)
|
| Tuning steps: | 10 / 100 Hz
1 / 3.125 / 5 / 6.25 / 8.33 / 9 / 10 / 12.5 / 15 / 20 / 25 / 30 / 50 / 100 / 200 KHz |
| Frequency stability: | ±2.5 ppm @ -20 to +60°C (-4 to +140°F) |
| Mode: |
Analog:
AM / AM-N / FM / NFM / WFM / SSB / CW
DV modes:
| APCO P25 | C4FM | IMBE |
| D-Star | GMSK | AMBE |
| DCR/NXDN | C4FM | AMBE+2 |
| dPMR | C4FM | AMBE+2 |
Only AM / FM modes above 1300 MHz!
|
| Channels / memory management: |
2000 regular in 100 banks
200 auto write
50 scan edge pairs
100 scan skip
300 GPS
Non-volatile EEPROM storage
|
| Power supply: | 3.6 VDC (BP-287) or 5 VDC external (USB) |
| Current drain / power consumption: | 100-330 mA (Single watch. GPS, recording and backlite off |
| Antenna impedance / connector: | 50 ohm / SMA |
| Dimensions (W*H*D): | 58*143*30 mm (2.3*5.6*1.2") |
| Weight: | 310 g (10.9 oz), with BP-287 battery pack and antenna |
| Other features: |
CTCSS/PL, DTCS. Bluetooth. Dual watch (with some limitations). GPS. 2.3" dot-matrix LCD.
Digital recording on Micro-SD. IP57 dust and water protection. VSC. Speech function.
ANL, NB. RF gain. Attenuator. Clock.
|
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne (Band B)
1st IF: 46.35 MHz
2nd IF: 450 KHz
Triple conversion superheterodyne (Band A)
1st IF: 266 MHz
2nd IF: 58.05 MHz (Except WFM), 10.7 MHz (WFM)
3rd IF: 450 KHz (Except WFM)
|

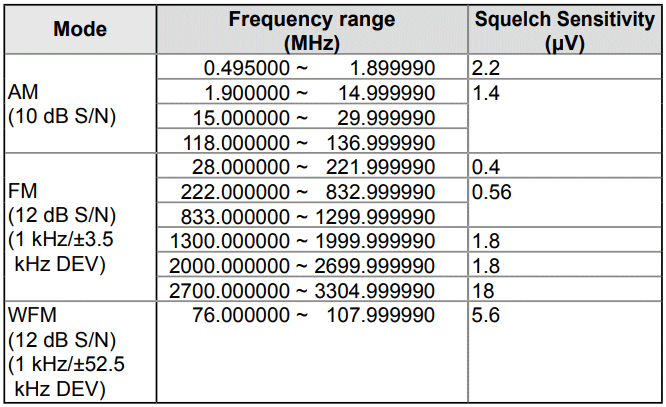

| Sensitivity: |
AM (10 dB S/N)
0.495-1.9 MHz: 2.2 uV
1.9-30 MHz: 1.4 uV
118-137 MHz: 1.4 uV
FM (12 dB SINAD)
28-222 MHz: 0.4 uV
222-1300 MHz: 0.56 uV
1300-2700 MHz: 1.8 uV
2700-3305 MHz: 18 uV
WFM (12 dB SINAD)
76-108 MHz: 1.8 uV
SSB/CW (10 dB S/N)
0.495-1.9 MHz: 0.4 uV
1.9-148 MHz: 0.25 uV
430-450 MHz: 0.32 uV
D-Star (1% BER)
28-30 MHz: 0.71 uV
50-54 MHz: 0.71 uV
144-148 MHz: 0.71 uV
430-450 MHz: 1 uV
1260-1300 MHz: 1 uV
NXDN/dPMR/DCR (1% BER)
136-174 MHz: 0.71 uV
350-512 MHz: 1 uV
P25 (5% BER)
136-174 MHz: 0.4 uV
400-470 MHz: 0.56 uV
763-870 MHz: 0.71 uV
|
| Selectivity: |
AM/FM
12 KHz (-6 dB), 30 KHz (-60 dB), below 1305 MHz
WFM
150 KHz (-6 dB)
SSB/CW
1.8 KHz (-6 dB)
|
| Image rejection: | |
| AF output power / speaker: | 400 mW at 10% distortion / 16 ohm |
| External speaker connector: | 3.5 mm, 8 ohm |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Japan, 2018-2021 (Discontinued) |
| Additional info: | New price 2018 in Sweden: SEK 7995:- |
| Related documents: |
Flyer (1.7 MB)
Basic manual (2.9 MB)
Advanced manual (3 MB)
|
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
BC-123SA
BC-123SE
BC-223
BP-287
BP-293
CS-R30
LC-189
MB-133
SP-40
VS-3
|
AC adapter. 100-240 VAC. US plug
AC adapter. 100-240 VAC. EU plug
Rapid charger
Li-Ion battery pack. 3.6 V, 3200 mAh
Dry cell battery case. 3*LR6/AA
Programming software
Carrying case
Belt clip
Earphone
Bluetooth headset
|
|
