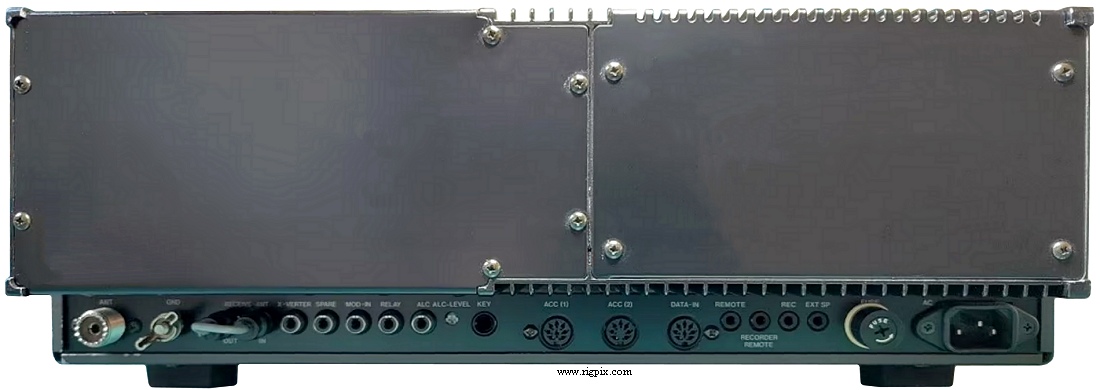

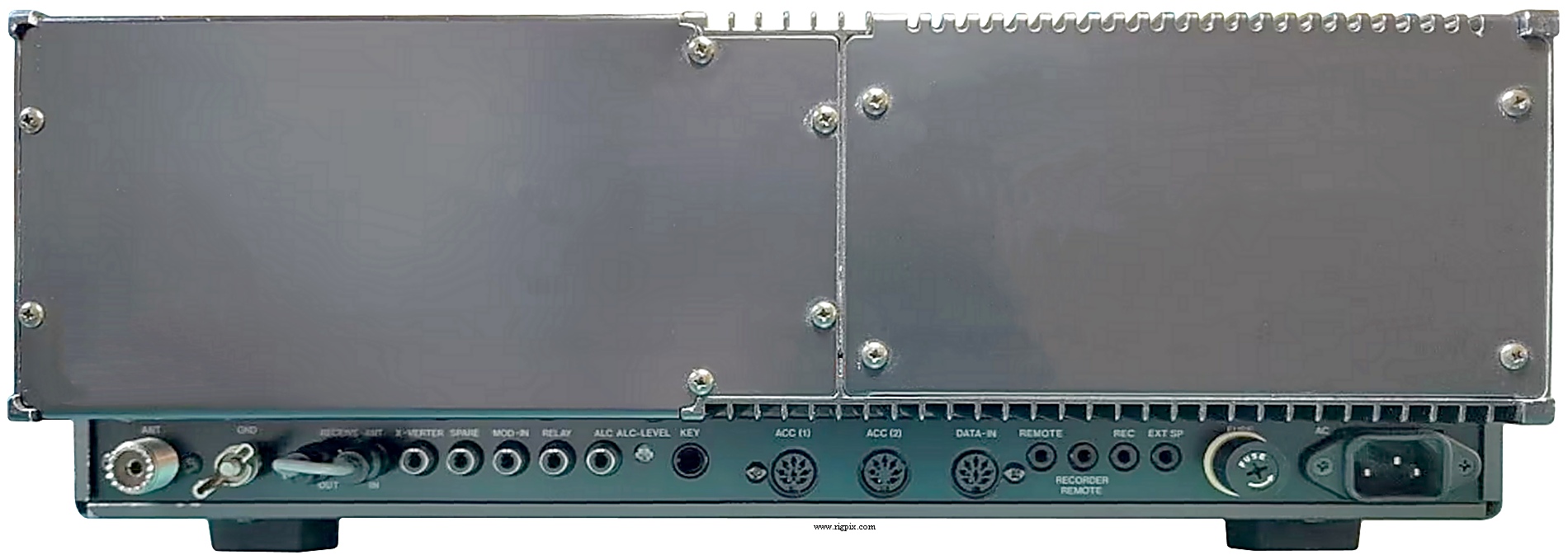

| GENERAL |
| Type: | Amateur HF transceiver |
| Frequency range: |
TX: 10-160 m + WARC
RX: 0.1-30 MHz
|
| Tuning steps: | 10 Hz / 1 KHz |
| Frequency stability: | ±15 Hz @ -10 to +60°C (14 to 140°F) |
| Mode: | AM / FM / SSB / CW / RTTY |
| Channels/memory management: |
99 regular with notes
2 scan edge
RAM storage with lithium battery backup
Plus one separate lithium battery for the clocks
|
| Repeater shift / offset: | No dedicated. Use VFO A/B split instead |
| Power supply: | Mains: 100-120 VAC (USA) or 220-240 VAC (Europe & Australia) |
| Current drain / power consumption: | RX: 140 to 150 VA
TX: 325 to 760 VA |
| Antenna impedance / connector: | 50 ohm (16.7-150 ohm with ATU on) / SO-239 |
| Dimensions (W*H*D): | 425*149*411 mm (16.8*5.9*16.2") |
| Weight: | 23 Kg (50.7 lb) |
| Other features: |

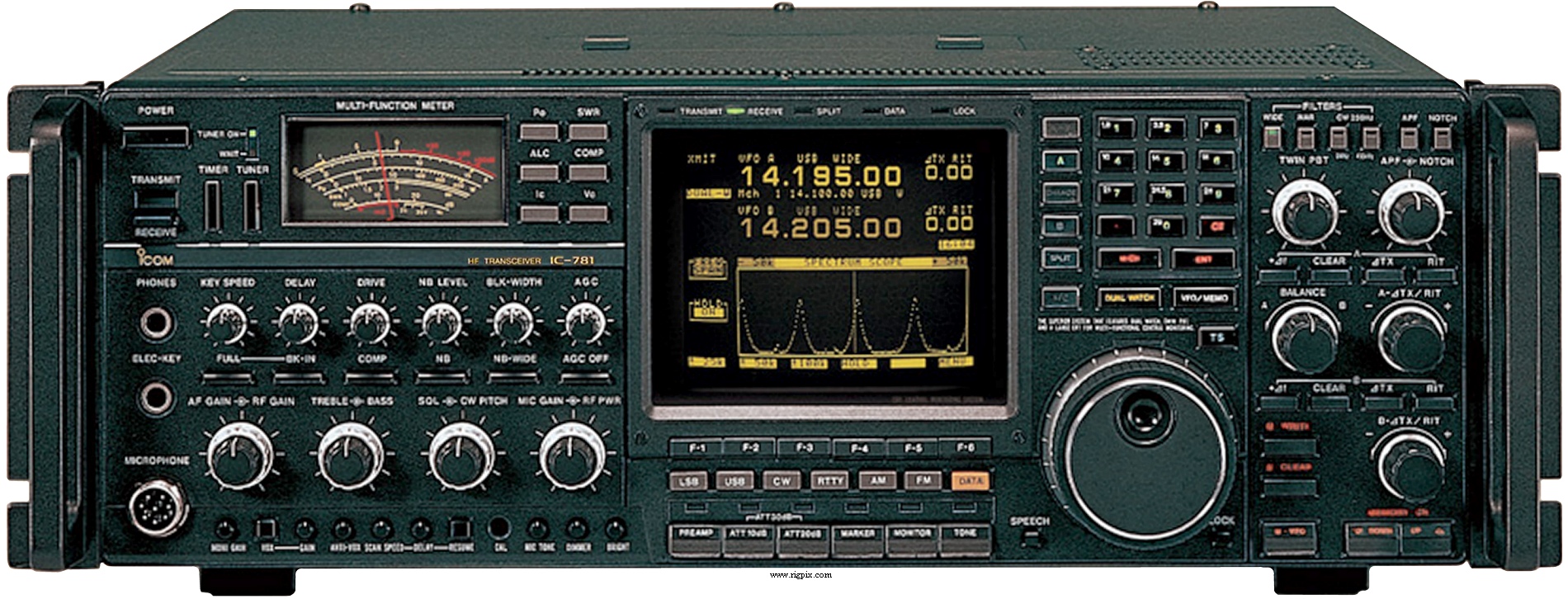

Monochrome CRT, Spectrum scope. Clock/timer, Notch, CTCSS/PL encoder.
Twin PBT. NB. Dual watch in the same band. VOX.
|
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Triple conversion superheterodyne (FM)
1st IF: 46.51 MHz
2nd IF: 9.01 MHz
3rd IF: 455 KHz
Quadruple conversion superheterodyne (AM/SSB/CW/RTTY)
1st IF: 46.51 MHz
2nd IF: 9.01 MHz
3rd IF: 455 KHz
4th IF: 10.695 MHz
|
| Sensitivity: | AM (10 dB S/N)
0.1-0.5 MHz: 3.2 uV
0.5-1.8 MHz: 6.3 uV
1.8-30 MHz: 1 uV
FM (12 dB SINAD)
28-30 MHz: 0.23 uV
SSB/CW/RTTY (10 dB S/N)
0.1-0.5 MHz: 0.5 uV
0.5-1.8 MHz: 1 uV
1.8-30 MHz: 0.16 uV
|
| Selectivity: |
AM-W
>6 KHz (-6 dB)
<15 KHz (-60 dB)
FM
>15 KHz (-6 dB)
<30 KHz (-60 dB)
SSB/CW-W/RTTY-W/AM-N
>2.4 KHz (-6 dB)
<3.8 KHz (-60 dB)
CW-N/RTTY-N (CM250Hz Off)
>500 Hz (-6 dB)
<1 KHz (-60 dB)
CW-N/RTTY-N (CM250Hz On)
>250 Hz (-6 dB)
<800 Hz (-60 dB)
|
| Image rejection: | -80 dB |
| AF output power / speaker: | 2.6 W at 10% distortion / 8 ohm |
| External speaker connector: | |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
| Pwr |
|---|
| AM: | 8-75 W |
| FM: | 15-150 W |
| SSB (PEP): | 15-150 W |
| CW/RTTY: | 15-150 W |
|
| Modulation system: | AM: Low level modulation
FM/RTTY: Reactance modulation
SSB: Balanced modulation |
| Max FM deviation (Factory set): | ±5 KHz |
| Spurious emissions: | Better than -60 dB |
| Microphone impedance / connector: | 600 ohm / 8-pin (Metal locking ring connector) |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Japan, 1987-1993 (Discontinued) |
| Additional info: |
New price 1988 in Sweden: SEK 46500:-
|
| Related documents: | User manual (6.7 MB) |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
CT-16
CT-17
HM-36
HP-2
IC-AT500
IC-2KL
SM-6
SM-8
SM-10
SP-20
UT-36
WR-200
WR-2000
|
Satellite interface unit
CI-V level converter
Standard hand microphone with up/down buttons
Communication headphones
Automatic antenna tuner, 500 W
Linear amplifier, 500 W
Desk microphone, electret condenser type
Desk microphone with dual line outputs
Desk microphone with compressor & graphic EQ
External speaker with filters
Voice synthesizer unit
SWR/Power meter, 1.8-150 MHz, 200 W
SWR/Power meter, 1.8-54 MHz, 2000 W
|
|
