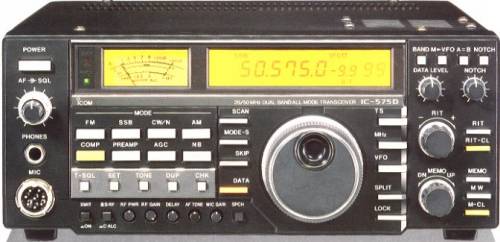

| Type: | Amateur HF/VHF transceiver |
| Frequency range: | TX: 28-29.7/50-54 MHz RX: 26-56 MHz |
| Mode: | AM/FM/SSB/CW |
| RF Power output: | 1-10 W |
| Sensitivity: | N/A |
| Selectivity: | N/A |
| Image rejection: | N/A |
| Voltage: | 13.8 VDC or mains |
| Current drain: | RX: 1.4-1.6 A TX: Max 5.2 A |
| Impedance: | 50 ohms, SO-239 |
| Dimensions (W*H*D): | 241*95*239 mm |
| Weight: | 6.1 Kg |
| Manufactured: | 19xx-19xx |
| Other: | |
| Related documents: |
