Expert Electronics SunSDR2 Pro

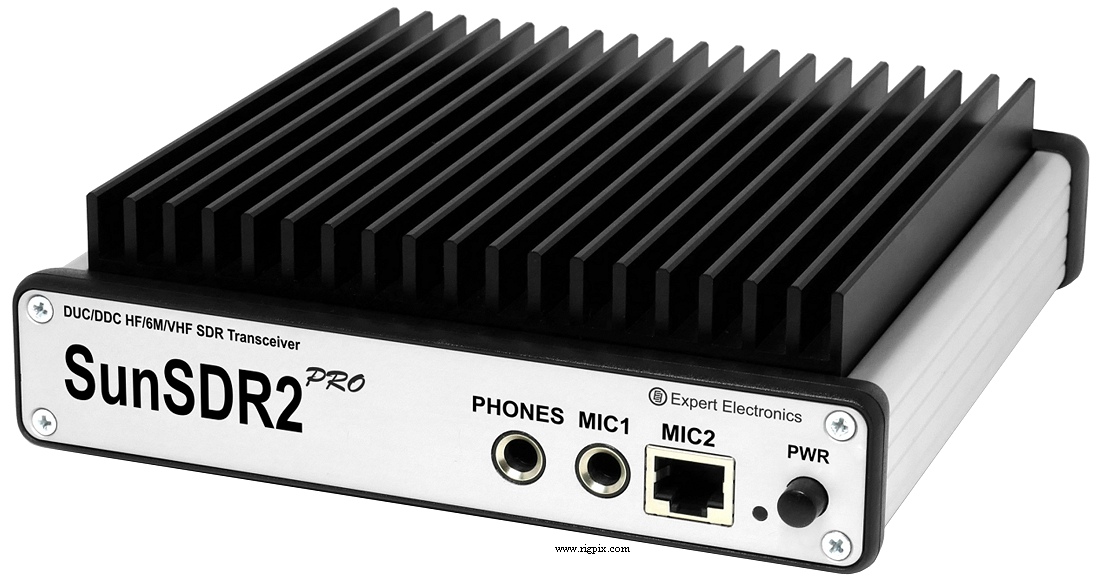

A picture of Expert Electronics SunSDR2 Pro

SPECIFICATIONS

GENERAL
Type:Amateur HF/VHF SDR transceiver
Frequency range: TX: 10-160 m + WARC / 6 m / 2 m
RX: 0.1-65 / 95-148 MHz
Tuning steps:Depending on software
Frequency stability:±0.5 ppm @ 0 to 50°C (32 to 122°F)
Mode:AM / AM-sync / FM / NFM / WFM / SSB / DSB / CW
Channels / memory management: Depending on software
Repeater shift / offset:Depending on software
Power supply:12-16 VDC
Current drain / power consumption:RX: Max 1.25 A
TX: Max 5 A
Antenna impedance / connector:50 ohm / Three Mini-UHF jacks
Dimensions (W*H*D):170*50*190 mm (6.69*1.97*7.48")
Weight:1.5 Kg (3.3 lb)
Other features:Two independent receivers. LAN connectivity. Max 80 MHz bandscope.




RECEIVER SECTION
Receiver system: Direct down conversion
Sensitivity:0.07 uV (No reference)
Selectivity:
Image rejection:
AF output power / speaker:? W at ?% distortion / No internal speaker
External speaker connector:6.3 mm (1/4")




TRANSMITTER SECTION
RF output power:

Max PWR
HF m:15 W
6 m:15 W
2 m:7 W
Modulation system:
Max FM deviation (Factory set):±? KHz
Spurious emissions:Better than -? dB
Microphone impedance / connector:? ohm / ?-pin
Microphone input level:? mV




MISCELLANEOUS
Manufactured:201x-202x
Additional info:
Related documents: User manual v1.5.0 (8.2 MB)
Hardware manual v1.1 (3.1 MB)
Modifications and fixes:
Reviews:
Options / Accessories:
- -

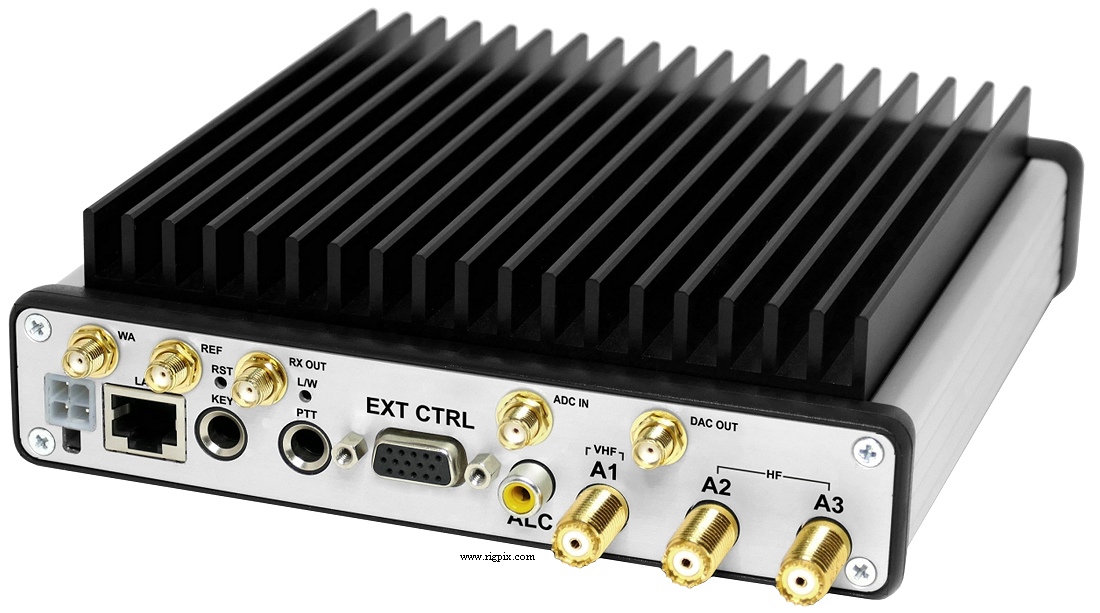

A rear picture of Expert Electronics SunSDR2 Pro
