Commander 170 (122-170)

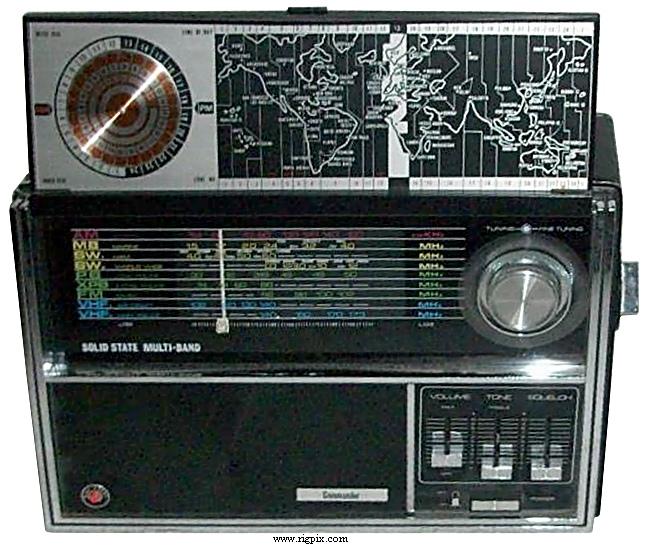

A picture of Commander 170 (122-170)

SPECIFICATIONS

GENERAL
Type:HF/VHF receiver
Frequency range:0.54-1.6 / 1.5-12 / 30-50 / 74-102 / 108-173 MHz
Tuning steps:Continuous, analog
Frequency stability:? ppm
Mode:AM/FM/WFM
Channels/memory management: None
Power supply:Mains: 220 VAC
or 6 VDC (4*LR20 / D batteries)
Current drain/power consumption:? mA @ 6 VDC
Antenna impedance/connector:? ohm / Two telescopic whips and an internal ferrite bar
Dimensions (W*H*D):320*260*120 mm (12.6*10.24*4.72")
Weight:3 Kg (6.61 lbs)
Other features:Squelch




RECEIVER SECTION
Receiver system:?
Sensitivity:
Selectivity:
Image rejection:
AF output power/speaker:? W at ?% distortion / ? ohm
External speaker connector:




MISCELLANEOUS
Manufactured:Japan, 197x-197x (Discontinued)
Additional info:
Related documents:
Modifications:
Reviews:
Options/Accessories:
- -
