Zodiac Tokyo

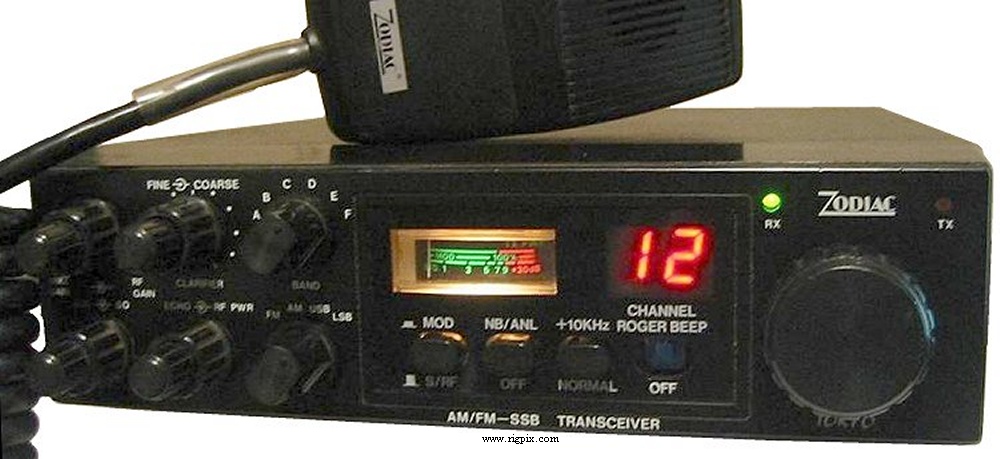

A picture of Zodiac Tokyo

SPECIFICATIONS

GENERAL
Type:Citizen band / "Freeband" / Export transceiver
Frequency range: 25.615-28.315 MHz in six bands
A:   25.615-26.055 MHz
B:   26.065-26.505 MHz
C:   26.515-26.955 MHz
D:   26.965-27.405 MHz
E:   27.415-27.855 MHz
F:   27.865-28.305 MHz + 10 KHz
Channels / tuning steps:271 (6*40 + alpha channels)
Mode:AM / FM / SSB
Frequency control:PLL
Frequency stability:?%
Clarifier or Delta tune:Coarse: ±? KHz
Fine: ±? Hz
Power supply:13.8 VDC (3-pin connector)
Current drain / power consumption:RX: ? mA
TX: ? A
Antenna impedance / connector:50 ohm / SO-239
Dimensions (W*H*D):200*60*230 mm (7.87*2.36*9.06")
Weight:? Kg (? lb)
Other features:ANL/NB. Roger beep. +10 KHz switch. Echo chamber.




RECEIVER SECTION
Receiver system: ? conversion superheterodyne
Sensitivity:
Selectivity:
Image rejection:
AF output power / speaker:? W at ?% distortion / ? ohm
External speaker connector:3.5 mm




TRANSMITTER SECTION
RF output power: AM: 10 W
FM: 10 W
SSB: 21 W (PEP)
Modulation system:
FM deviation (Factory set):±? KHz
Spurious emissions:Better than -? dB
Microphone impedance / connector:? ohm / 4-pin (Metal locking ring connector)
Microphone input level:? mV




MISCELLANEOUS
Manufactured:Taiwan, 199x-199x (Discontinued)
Main PCB:
Sub PCBs:
Additional info:
Related documents:
Sams Photofact #:None
Modifications and fixes:
Reviews:
Options / Accessories:
- -
