SuperStar 120FM

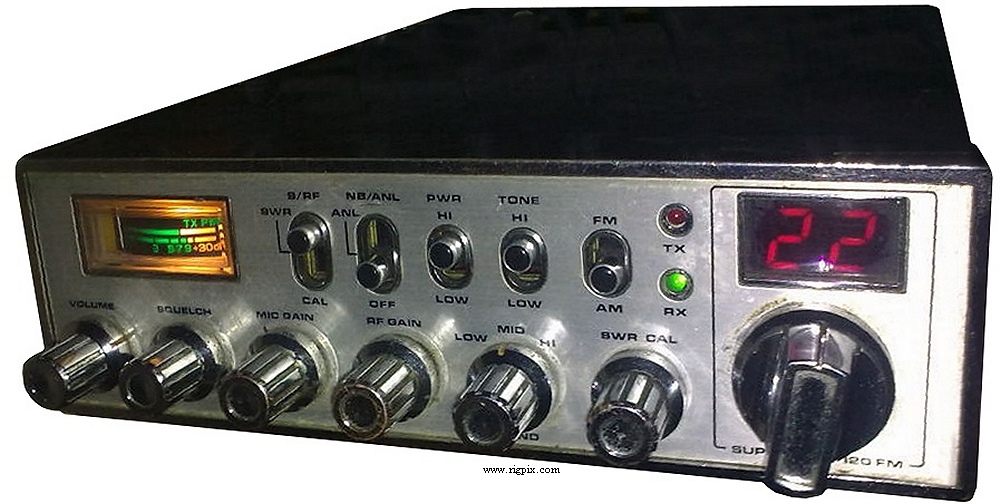

A picture of SuperStar 120FM

SPECIFICATIONS

GENERAL
Type:Citizen band / "Freeband" / Export transceiver
Frequency range: 26.515-27.855 MHz in three bands:
Low: 26.515-26.955 MHz
Mid: 26.965-27.405 MHz
Hi: 27.415-27.855 MHz
Channels / tuning steps:120 (3*40)
Mode:AM / FM
Frequency control:PLL
Frequency stability:0.001%
Clarifier or Delta tune:No
Power supply:11.7-15.9 VDC (3-pin connector)
Current drain / power consumption:RX: 0.5-1.5 A
TX: Max 3 A
Antenna impedance / connector:50 ohm / SO-239
Dimensions (W*H*D):188*57*222 mm (7.38*2.25*8.75")
Weight:1.9 Kg (4.2 lb)
Other features:NB/ANL. Roger beep. SWR-meter.




RECEIVER SECTION
Receiver system: Double conversion superheterodyne
1st IF: 10.695 MHz
2nd IF: 455 KHz
Sensitivity: AM: 1 uV (10 dB S+N/N)
FM: ? uV
Selectivity:
Image rejection:50 dB
AF output power / speaker:2.5 W at 10% distortion / 16 ohm
External speaker connector:3.5 mm, 4-8 ohm




TRANSMITTER SECTION
RF output power:Hi: 7 W
Lo: 4 W
Modulation system:
Max FM deviation (Factory set):±? KHz
Spurious emissions:Better than -? dB
Microphone impedance / connector:? ohm / 4-pin (Metal locking ring connector)
Microphone input level:? mV




MISCELLANEOUS
Manufactured:19xx-19xx (Discontinued)
Main PCB:PC-548AF by Uniden
Sub PCBs:
Additional info:
Related documents:
Sams Photofact #:None
Modifications and fixes:
Reviews:
Options / Accessories:
- -
