SBE Formula D Touch/Com 40 (SBE-43CB)

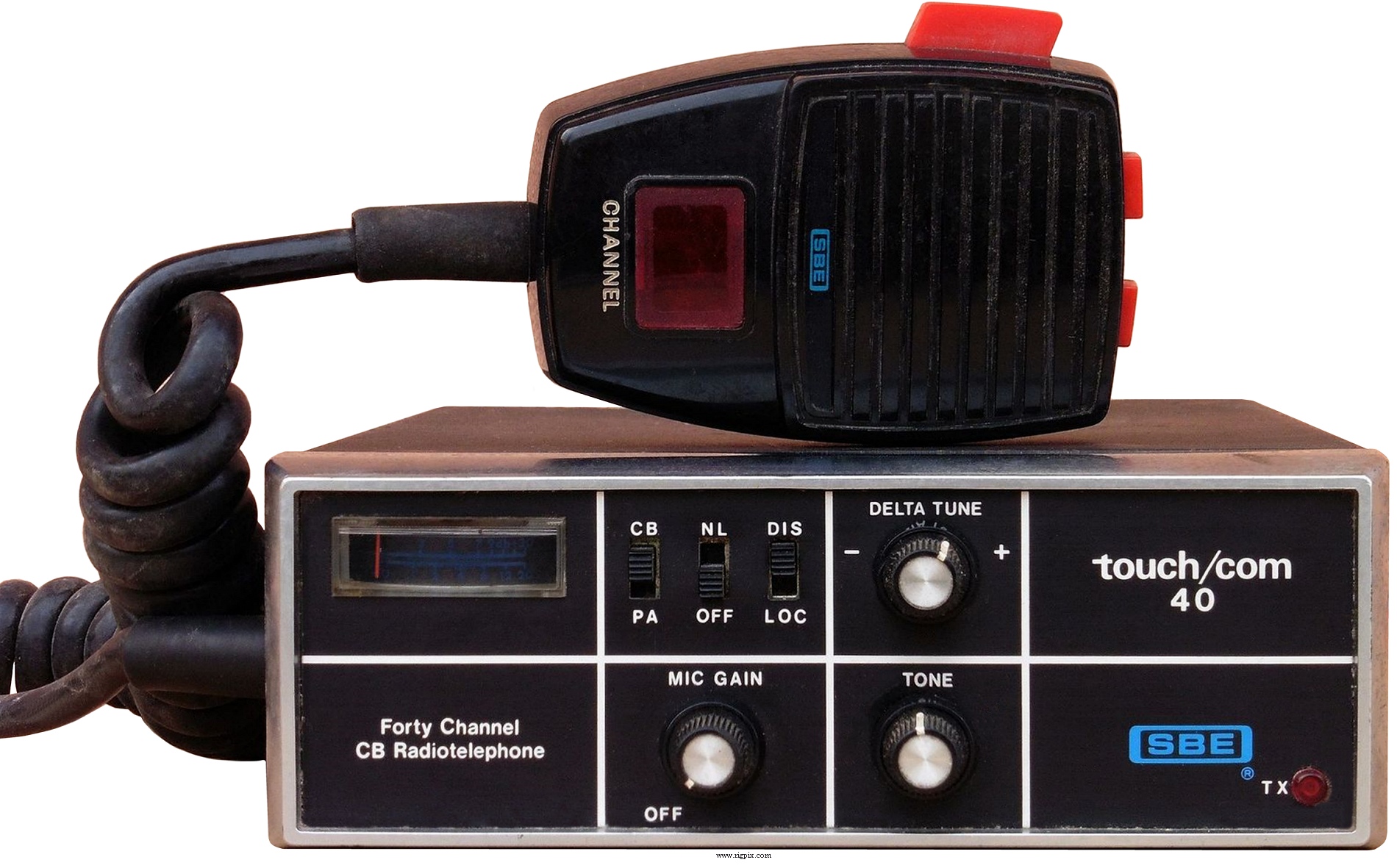

A picture of SBE Formula D Touch/Com 40 (SBE-43CB)

SPECIFICATIONS

GENERAL
Type:Citizen band transceiver
Frequency range:26.965-27.405 MHz
Channels / tuning steps:40
Mode:AM
Frequency control:PLL (Multiple discrete IC's)
Frequency stability:±0.005%
Clarifier or Delta tune:±? KHz
Power supply:13.8 VDC
Current drain / power consumption:RX: ? mA
TX: ? A
Antenna impedance / connector:50 ohm / SO-239
Dimensions (W*H*D):? mm (?")
Weight:? Kg (? lb)
Other features:PA. Delta tune. Noise limiter.




RECEIVER SECTION
Receiver system: Double conversion superheterodyne
1st IF: 10.695 MHz
2nd IF: 455 KHz
Sensitivity:
Selectivity:
Image rejection:
AF output power / speaker:? W at ?% distortion / ? ohm
External speaker connector:3.5 mm




TRANSMITTER SECTION
RF output power:4 W
Modulation system:
FM deviation (Factory set):No FM
Spurious emissions:Better than -? dB
Microphone impedance / connector:? ohm / ?-pin
Microphone input level:? mV




MISCELLANEOUS
Manufactured:Japan, 1977-197x (Discontinued)
Main PCB:
Sub PCBs:
Additional info: The front panel indicates this is a "Touch/Com", but the full
model name is visible on the rear label.
Related documents:
Sams Photofact #:CB-174 (March 1978)
Modifications and fixes:
Reviews:
Options / Accessories:
- -
A rear picture of SBE Formula D Touch/Com 40 (SBE-43CB)
A picture of SBE Formula D Touch/Com 40 (SBE-43CB) label
