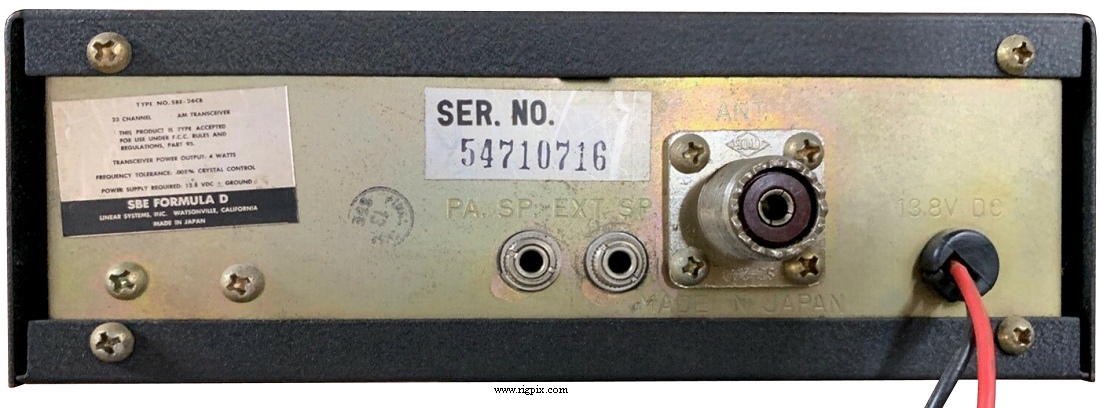

| GENERAL |
| Type: | Citizen band transceiver |
| Frequency range: | 26.965-27.255 MHz |
| Channels / tuning steps: | 23 |
| Mode: | AM |
| Frequency control: | PLL (Multiple discrete IC's) |
| Frequency stability: | ±0.003% |
| Clarifier or Delta tune: | ±750 Hz |
| Power supply: | 11.7-15.9 VDC (Fixed power cord) |
| Current drain / power consumption: | RX: 0.5-1.3 A
TX: Max 1.7 A |
| Antenna impedance / connector: | 50 ohm / SO-239 |
| Dimensions (W*H*D): | 170*60*240 mm (6.75*2.5*9.38") |
| Weight: | 2.73 Kg (6 lb) |
| Other features: | PA. Noise limiter. Local/distance switch. Delta tune. |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: 10.695 MHz
2nd IF: 455 KHz
|
| Sensitivity: | 0.5 uV (10 dB S+N/N) |
| Selectivity: | 20 KHz (-50 dB) |
| Image rejection: | 40 dB |
| AF output power / speaker: | 3.5 W at 10% distortion / 8 ohm |
| External speaker connector: | 3.5 mm, 4-8 ohm |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: | 4 W |
| Modulation system: | |
| Max FM deviation (Factory set): | No FM |
| Spurious emissions: | Better than -? dB |
| Microphone impedance / connector: | 500 ohm / 4-pin (Metal locking ring connector) |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | 1975-197x (Discontinued) |
| Main PCB: | |
| Sub PCBs: | |
| Additional info: | |
| Related documents: |
User manual (3 MB)
Service manual (16.6 MB)
|
| Sams Photofact #: | CB-91 (July 1976) |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
