Realistic TRC-206 (21-1635)

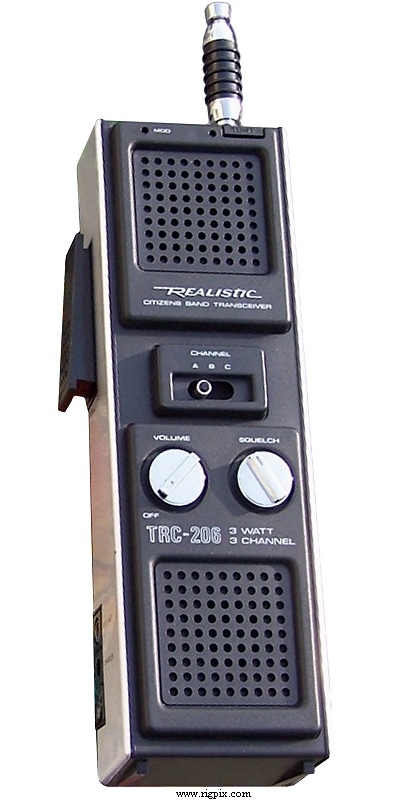

A picture of Realistic TRC-206 (21-1635)

SPECIFICATIONS

GENERAL
Type:Citizen band transceiver
Frequency range:26.965-27.405 MHz
Channels/tuning steps:3
Mode:AM
Frequency control:Two XTALs per channel
Frequency stability:±?%
Power supply:12 VDC (8*LR6/AA alkaline or 10*LR6/AA NiCd) or 12 VDC external
Current drain/power consumption:RX: ? mA
TX: ? A
Antenna impedance/connector:50 ohm / Phono (RCA) and fixed telescopic whip
Dimensions (W*H*D):86*248*76 mm (3.4*9.75*3")
Weight:? Kg (? lb)
Other features:Modulation and battery indicators.




RECEIVER SECTION
Receiver system:Single conversion superheterodyne
IF: 455 KHz
Sensitivity:
Selectivity:
Image rejection:
AF output power/speaker:? W at ?% distortion / ? ohm
External speaker connector:




TRANSMITTER SECTION
RF output power:3 W (Input)
Modulation system:
FM deviation:No FM
Spurious emissions:Less than -? dB
Microphone impedance/connector:? ohm / ?-pin
Microphone input sensitivity:? mV




MISCELLANEOUS
Manufactured:Korea, 1979-1984 (Discontinued)
Main PCB:
Additional info:New price 1983 in the US: $59.95
Related documents:
Sams Photofact #:None
Modifications and fixes:
Reviews:
Options/Accessories:
- -
