Pearce-Simpson Bearcat 23C (By Gladding Corporation)

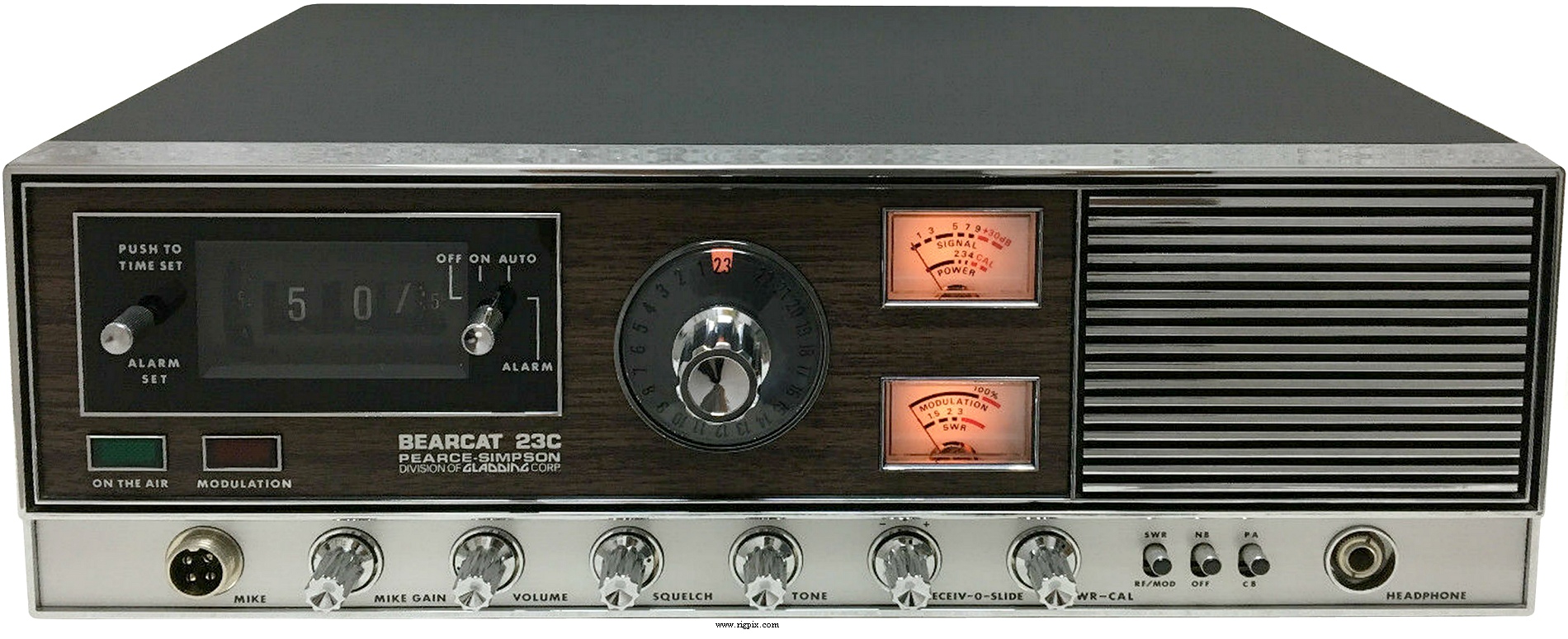

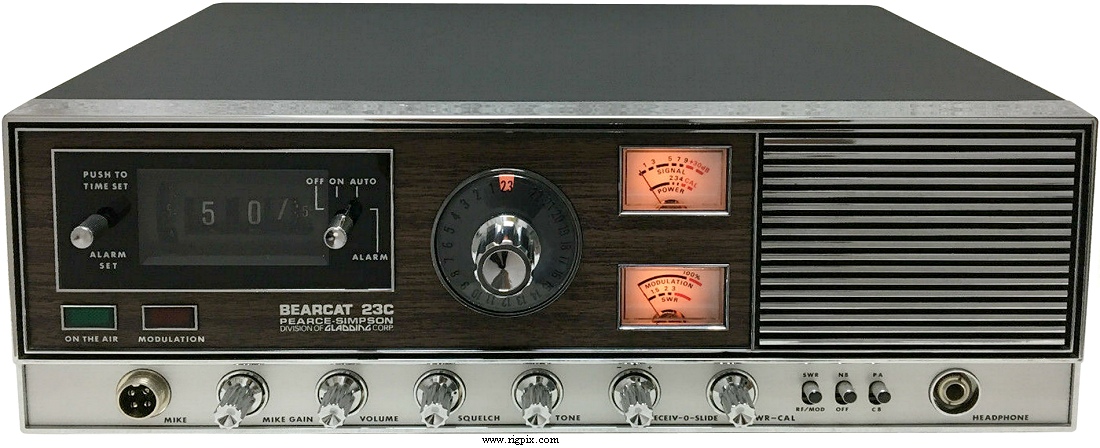

A picture of Pearce-Simpson Bearcat 23C (By Gladding Corporation)

SPECIFICATIONS

GENERAL
Type:Citizen band transceiver
Frequency range:26.965-27.255 MHz
Channels / tuning steps:23
Mode:AM
Frequency control:XTAL-matrix
Frequency stability:?%
Clarifier or Delta tune:±? KHz "Receiv-o-slide"
Power supply:Mains (Fixed power cord)
or 13.8 VDC (3-pin connector)
Current drain / power consumption:RX: ? mA
TX: ? A
Antenna impedance / connector:50 ohm / SO-239
Dimensions (W*H*D):? mm (?")
Weight:? Kg (? lb)
Other features:PA. NB. Alarm clock. SWR-meter.




RECEIVER SECTION
Receiver system:? conversion superheterodyne
1st IF: ? MHz
2nd IF: ? KHz
Sensitivity:
Selectivity:
Image rejection:
AF output power / speaker:? W at ?% distortion / ? ohm
External speaker connector:3.5 mm




TRANSMITTER SECTION
RF output power:4 W
Modulation system:
FM deviation (Factory set):No FM
Spurious emissions:Better than -? dB
Microphone impedance / connector:? ohm / 4-pin (Metal locking ring connector)
Microphone input level:? mV




MISCELLANEOUS
Manufactured:Japan, 1975-197x (Discontinued)
Main PCB:
Sub PCBs:
Additional info:New price 1975 in the US: $339.95
Related documents:
Sams Photofact #:CB-64 (April 1975)
Modifications and fixes:
Reviews:
Options / Accessories:
- -
