Midland 4001 (77-004 UK) "Precision series"

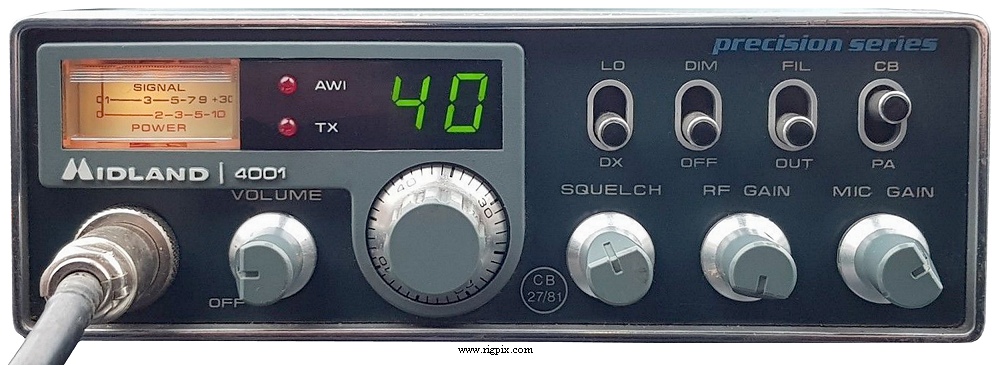

A picture of Midland 4001 (77-004 UK) ''Precision series''

SPECIFICATIONS

GENERAL
Type:Citizen band transceiver
Frequency range:27.60125-27.99125 MHz
Channels / tuning steps:40 (UK CB 27/81)
Mode:FM
Frequency control:PLL
Frequency stability:±?%
Clarifier or Delta tune:No
Power supply:10-16 VDC (2-pin connector)
Current drain / power consumption:RX: ? mA
TX: ? A
Antenna impedance / connector:50 ohm / SO-239
Dimensions (W*H*D):? mm (?")
Weight:? Kg (? lb)
Other features:PA. Dimmer. SWR warning (AWI).




RECEIVER SECTION
Receiver system: Double conversion superheterodyne
1st IF: ? MHz
2nd IF: 455 KHz
Sensitivity:1 uV (20 dB S+N/N)
Selectivity:
Image rejection:
AF output power / speaker:2 W at 10% distortion / 4 ohm
External speaker connector:3.5 mm




TRANSMITTER SECTION
RF output power:4 W
Modulation system:
FM deviation (Factory set):±1.5 KHz
Spurious emissions:Better than -72 dB
Microphone impedance / connector:? ohm / ?-pin (Metal locking ring connector)
Microphone input level:? mV




MISCELLANEOUS
Manufactured:Korea (By Maxon), 1981-198x (Discontinued)
Main PCB:
Sub PCBs:
Additional info:
Related documents:
Sams Photofact #:None
Modifications and fixes:
Reviews:
Options / Accessories:
- -
A rear picture of Midland 4001 (77-004 UK)
