Midland 2001T "Precision series"

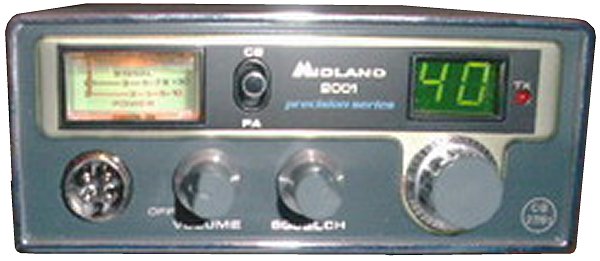

A picture of Midland 2001T ''Precision series''

SPECIFICATIONS

GENERAL
Type:Citizen band transceiver
Frequency range:27.60125-27.99125 MHz
Channels / tuning steps:40 (UK CB 27/81)
Mode:FM
Frequency control:PLL
Frequency stability:Max ? ppm
Clarifier or Delta tune:No
Power supply:13.8 VDC
Current drain / power consumption:RX: ? mA
TX: ? A
Antenna impedance / connector:50 ohm / SO-239
Dimensions (W*H*D):? mm (?")
Weight:? Kg (? lb)
Other features:Built-in speech-synthesizer




RECEIVER SECTION
Receiver system: Double conversion superheterodyne
1st IF: ? MHz
2nd IF: ? KHz
Sensitivity:
Selectivity:
Image rejection:
AF output power / speaker:? W at ?% distortion / ? ohm
External speaker connector:




TRANSMITTER SECTION
RF output power:4 W
Modulation system:
FM deviation (Factory set):±? KHz
Spurious emissions:Better than -? dB
Microphone impedance / connector:? ohm / 4-pin (Metal locking ring connector)
Microphone input level:? mV




MISCELLANEOUS
Manufactured:Korea (By Maxon), 1981-198x (Discontinued)
Main PCB:
Sub PCBs:
Additional info:
Related documents:
Sams Photofact #:None
Modifications and fixes:
Reviews:
Options / Accessories:
- -
An inside picture of Midland 2001T
