Lafayette Evolution

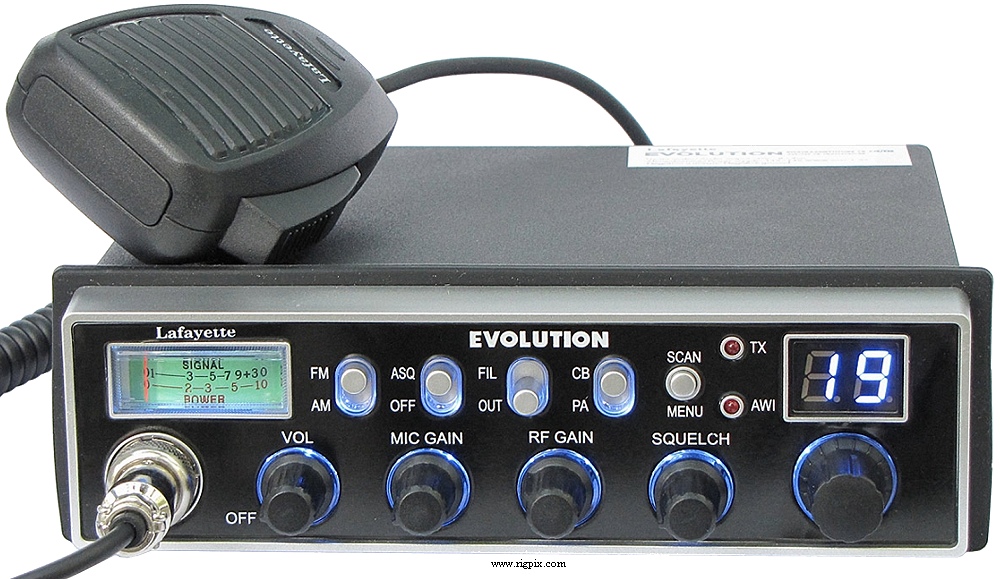

A picture of Lafayette Evolution

SPECIFICATIONS

GENERAL
Type:Citizen band multinorm transceiver
Frequency range:EU/CEPT: 26.965-27.405 MHz
PL: 26.960-27.400 MHz
UK: 27.60125-27.99125 MHz
Export: 26.065-28.305 MHz
Channels/tuning steps:40-240 depending on setting
Mode:AM/FM
Frequency control:PLL
Power supply:12 or 24 VDC
Current drain/power consumption:RX: ? mA
TX: ? A
Antenna impedance/connector:50 ohms / SO-239
Dimensions (W*H*D):178*50*155 mm (7*2*6.1")
Weight:? Kg (? lbs)
Other features:NB/ANL, Scanning, ASC, DIN-size




RECEIVER SECTION
Receiver system:Double conversion superheterodyne
1st IF: ? MHz
2nd IF: ? KHz
Sensitivity:AM: 0.5 uV (10 dB S/N)
FM: 0.2 uV (12 dB SINAD)
Selectivity:
Image rejection:
AF output power/speaker:3 W at ?% distortion / 8 ohms
External speaker connector:




TRANSMITTER SECTION
RF output power:AM: 4 W (10 W)
FM: 4 W (10 W)
Modulation system:
Max FM deviation:? KHz
Spurious emissions:Less than -? dB
Microphone impedance/connector:? ohms / 4-pin




MISCELLANEOUS
Manufactured:2013-201x
Additional info:
Related documents:
Modifications:
Options/Accessories:
- -
