| GENERAL |
| Type: | Citizen band transceiver |
| Frequency range: | 26.965-27.255 MHz
(27-31 MHz depending on alignment) |
| Channels / tuning steps: | 6 |
| Mode: | AM |
| Frequency control: | Two XTALs per channel |
| Frequency stability: | ±?% |
| Clarifier or Delta tune: | No |
| Power supply: | 13.8 VDC ±15% (Fixed power cord) |
| Current drain / power consumption: | RX: 100 mA
TX: 800 mA |
| Antenna impedance / connector: | 50 ohm / SO-239 |
| Dimensions (W*H*D): | 115*40*150 mm (4.53*1.58*5.9") |
| Weight: | 800 g (1.76 lb) |
| Other features: | External selcall jack. |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Single conversion superheterodyne
IF: 455 KHz
|
| Sensitivity: | 0.7 uV (10 dB S+N/N) |
| Squelch sensitivity: | Less than 1 uV (Treshold) |
| Selectivity: | 20 KHz (-50 dB) |
| Image rejection: | |
| AF output power / speaker: | 1 W at 10% distortion / 8 ohm |
| External speaker connector: | TS "Minijack" (3.5 mm) |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: | ~3 W (5 W input) |
| Modulation system: | |
| Max FM deviation (Factory set): | No FM |
| Spurious emissions: | Better than -? dB |
| Microphone impedance / connector: | ? ohm / Fixed cord to a Handic 44 mike |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Japan, 197x-197x (Discontinued) |
| Main PCB: |
GE-19C-4683 by GRE
Single sided with through-hole components
|
| Sub PCBs: | None |
| Additional info: |
New price 1976 in Sweden: SEK 645:-
New price 1978 in Sweden: SEK 499:-
|
| Related documents: |
Service manual (2.3 MB)
AF amplifier: Two 2SA699A
RF driver: 2SC1728
RF final: 2SC756
|
| Market(s) / Approval(s): |
Sweden
Televerket
|

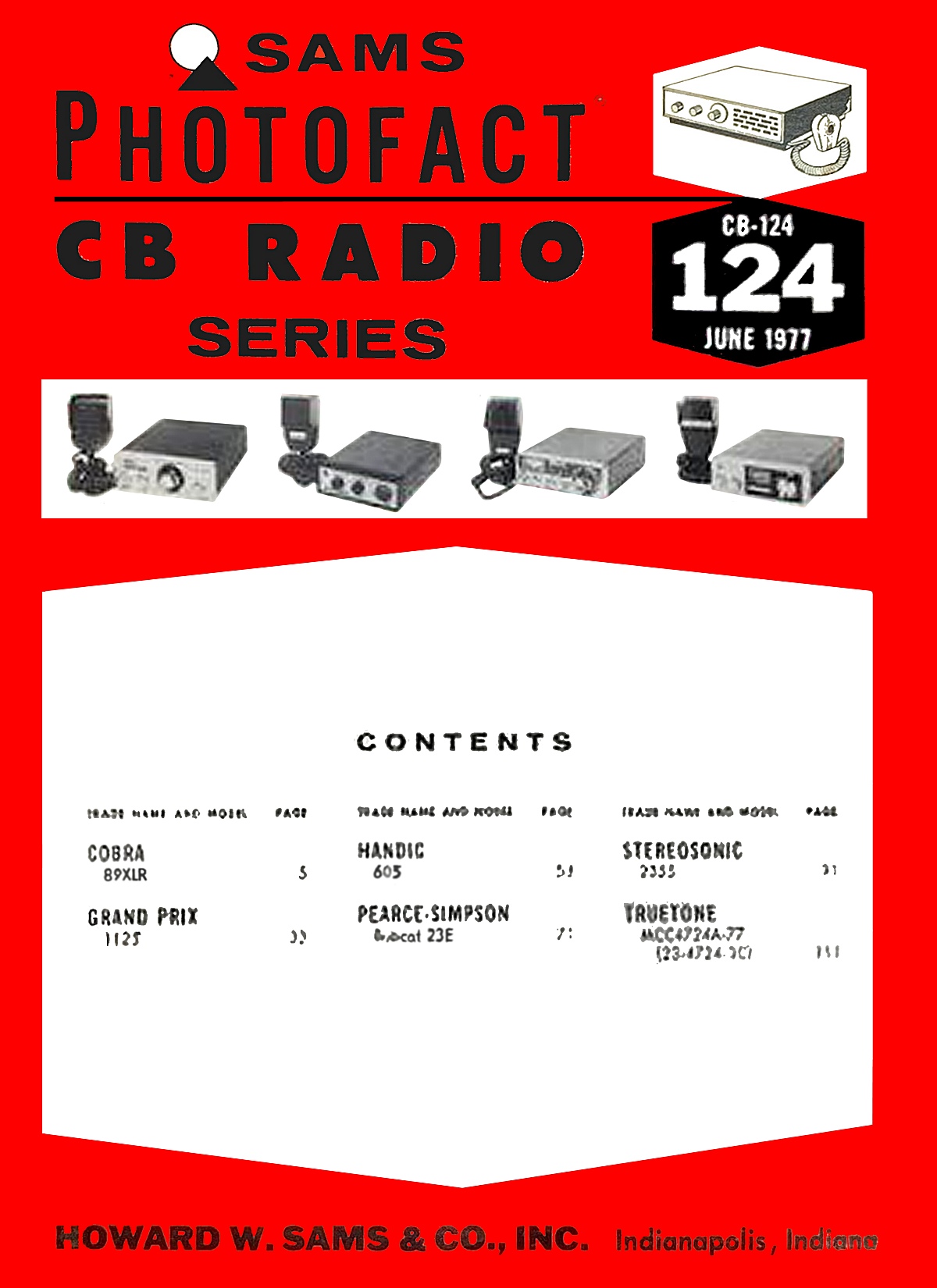

| Sams Photofact #: | CB-124 (June 1977) |
