BCD-436HP (Trunktracker V)

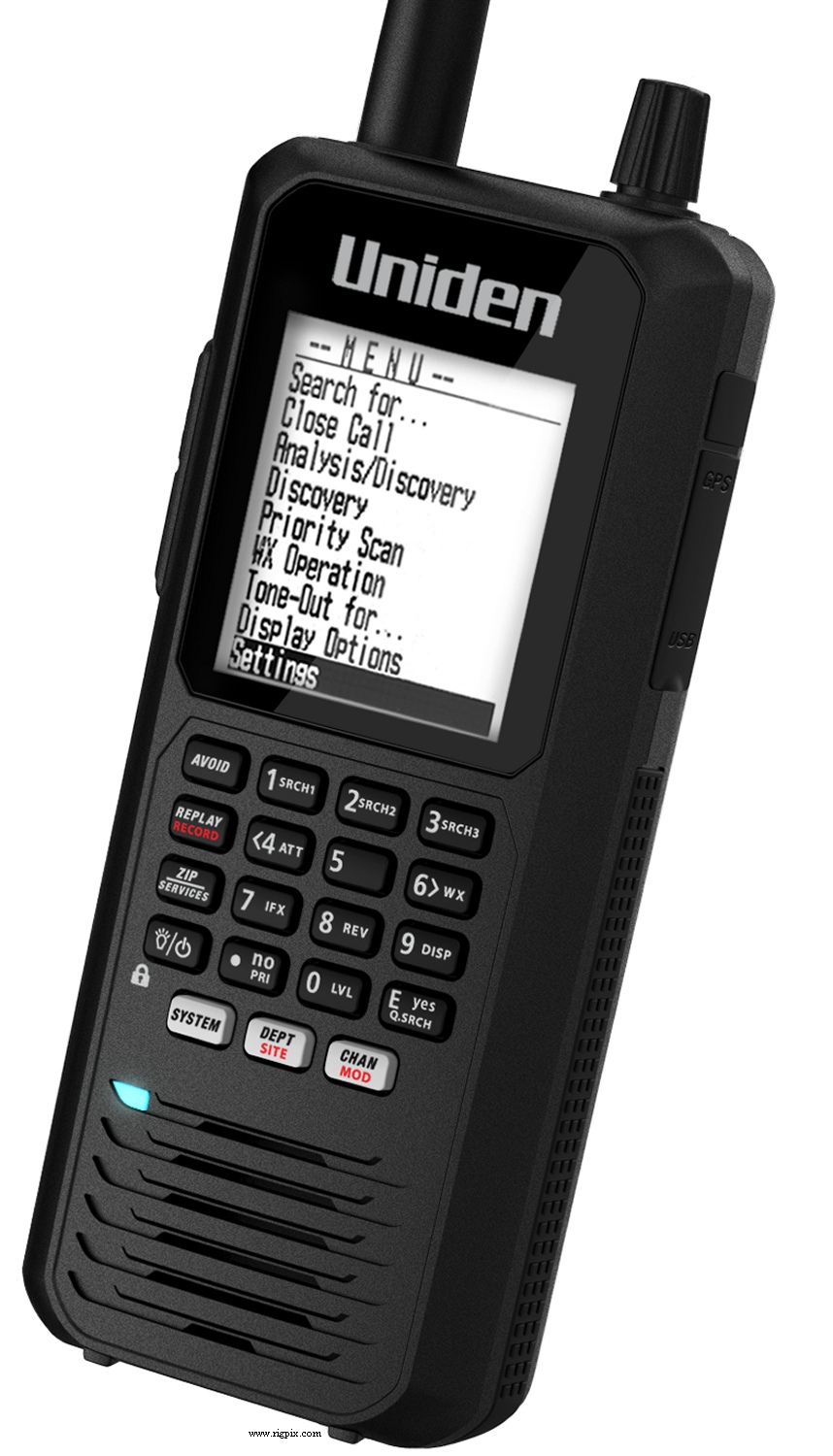

A picture of BCD-436HP (Trunktracker V)

SPECIFICATIONS

GENERAL
Type:HF/VHF/UHF receiver/scanner
Frequency range:25-512 / 758-824 / 849-869 / 894-960 / 1240-1300 MHz
Tuning steps:5 / 6.25 / 7.5 / 8.33 / 10 / 12.5 / 15 / 20 / 25 / 50 / 100 KHz
Frequency stability:? ppm
Mode:AM/FM/WFM/FMB/APCO P25
Channels/memory management: Dynamic memory system with alpha tags
Max 100 priority channels
7 NOAA weather channels with SAME alert
HomePatrol type database
Power supply:3.6-4.5 VDC (3*R6/AA NiMH or Alkaline batteries)
Current drain/power consumption:? mA
Antenna impedance/connector:50 ohm / SMA
Dimensions (W*H*D):71*161*37 mm (2.8*6.3*1.5")
Weight:349 g (12.3 oz). with batteries and antenna
Other features: Trunktracker V: Tracks APCO P25 phase 1 and 2, Motorola, EDACS and LTR.
Multicolor LED alert. Close Call RF capture technology. Analog and digital AGC.
CTCSS/PL & DCS. MicroSD card. Digital recording. PC-programming. Attenuator.
Backlit 192*160 dot matrix LCD. GPS option.




RECEIVER SECTION
Receiver system:? conversion superheterodyne
1st IF: ? MHz
2nd IF: ? KHz
Sensitivity: AM (12 dB SINAD)
25 MHz: 0.4 uV
118-135 MHz: 0.4 uV
225 MHz: 0.3 uV
272-325 MHz: 0.4 uV
1380.5-1800 MHz: 1.4 uV
FM (12 dB SINAD)
40-72 MHz: 0.3 uV
138 MHz: 0.4 uV
161-173 MHz: 0.3 uV
216 MHz: 0.3 uV
406-512 MHz: 0.3 uV
758-955 MHz: 0.3 uV
1299 MHz: 0.4 uV
WFM (12 dB SINAD)
54 MHz: 0.7 uV
197 MHz: 0.6 uV
FMB (12 dB SINAD)
107 MHz: 0.6 uV
Selectivity:
Image rejection:
AF output power/speaker:360 mW at ?% distortion / 24 ohm
External speaker connector:




MISCELLANEOUS
Manufactured:Vietnam, 2014-201x
Additional info:
Related documents:User manual (6.8 MB)
Modifications:
Reviews:
Options/Accessories:
- -
