Ajoka AJ-801T

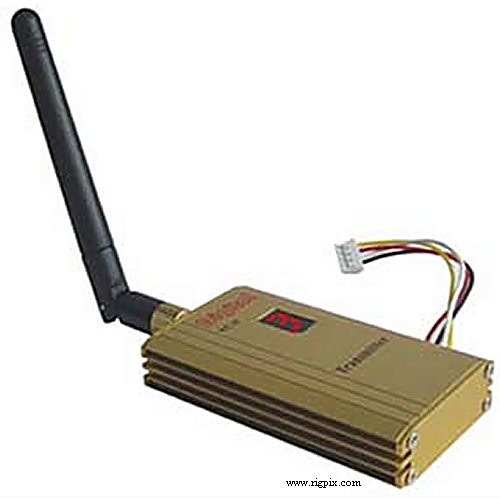

A picture of Ajoka AJ-801T

SPECIFICATIONS

GENERAL
Type:UHF video transmitter
Frequency range: 2.4 GHz (12 channels)
Tuning steps:Channelized
Video mode:FM
Audio mode:FM
Power supply:12 VDC
Current drain / power consumption:Max 400 mA
Antenna impedance / connector:50 ohm / SMA
Dimensions (W*H*D):60*48*35 mm (2.36*1.89*1.38")
Weight:130 g (4.59 oz)
Other features:




TRANSMITTER SECTION
RF output power:1 W
Modulation system:
Max FM deviation (Factory set):
Spurious emissions:
Input impedance / connector:




MISCELLANEOUS
Manufactured:China/Hong Kong, 200x-200x (Discontinued)
Additional info:
Related documents:
Modifications and fixes:
Reviews:
Options / Accessories:
- -
