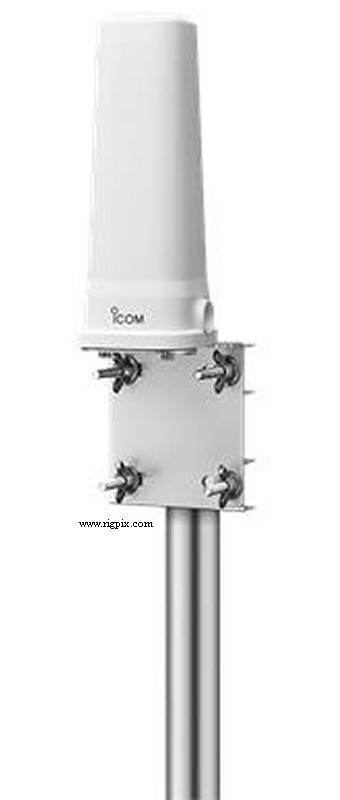

Icom AH-24
SPECIFICATIONS
| Type: | Amateur UHF collinear vertical base antenna |
| Frequency range / band(s): | 2300-2450 MHz (13 cm) |
| Bandwidth: | 150 MHz @ VSVR 1.5 or less |
| Gain: | 4 dBi |
| Beamwidth (-3 dB): | Omni |
| G/T @ 30° elevation: | - |
| Max power: | ? W |
| Impedance / connector: | 50 ohm / SMA-R |
| Wind area: | |
| Max wind resistance: | |
| Turning radius: | - |
| Dimensions W*H*D: | 77*200*77 mm (3*7.9*3") |
| Weight: | 228 g (8 oz) |
| Mast mount diameter: | ?-? mm (?-?") |
| Manufactured: | Japan, 2023-202x |
| Additional info: | |
| Related documents: | User manual (881 KB) |
| Reviews: | |
| Options / Accessories: |
|
|
