Hotline HL-B621N

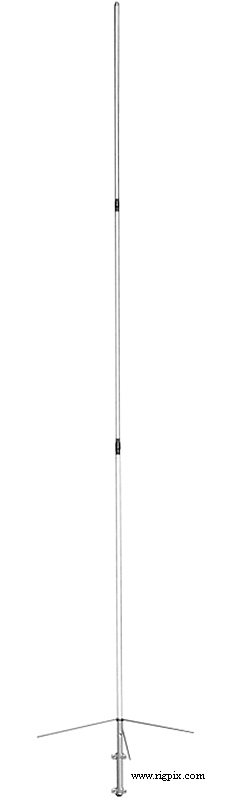

A picture of Hotline HL-B621N

SPECIFICATIONS

Type:Amateur VHF/UHF vertical base antenna
Frequency range / band(s): 2 m - 3*5/8 wave
70 cm - 7*5/8 wave
Bandwidth:
Gain: 2 m - 8.3 dBi
70 cm - 11.7 dBi
Beamwidth (-3 dB):Omni
G/T @ 30° elevation:-
Max power:200 W
Impedance / connector:50 ohm / N-jack
Wind area:? m² (? ft²)
Max wind resistance:? m/sec (? mph)
Turning radius:-
Dimensions:Height: 5.4 m (17.7 ft)
Weight:2 Kg (4.41 lb)
Mast mount diameter:?-? mm (?-?")
Manufactured:xxxx-200x (Discontinued)
Additional info:
Related documents:
Reviews:
Options / Accessories:
- -
