G1MFG 23 cm

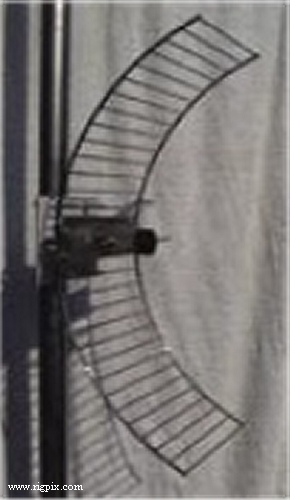

A picture of G1MFG 23 cm

SPECIFICATIONS

Type:Amateur UHF corner reflector antenna
Frequency range / band(s): TX: 23 cm
RX: 1100-1400 MHz
Bandwidth:
Gain:13 dBi
Beamwidth (-3 dB):E-plane: ?°
H-plane: ?°
G/T @ 30° elevation:-
Max power:40 W (Continuous)
Impedance / connector:50 ohm / SMA
Wind area:? m² (? ft²)
Max wind resistance:? m/sec (? mph)
Turning radius:? cm (?")
Dimensions:175*450*220 mm (7*17.5*8.5"), including mast standoff
Weight:? Kg (? lb)
Mast mount diameter:?-? mm (?-?")
Manufactured:199x-20xx (Discontinued)
Additional info:
Related documents:
Reviews:
Options / Accessories:
- -
