Diamond VK-510

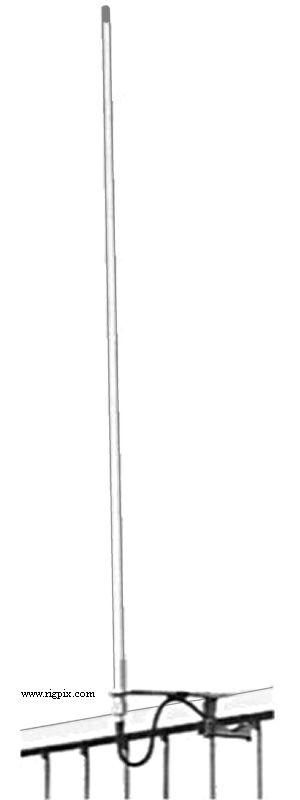

A picture of Diamond VK-510

SPECIFICATIONS

Type:Amateur VHF/UHF vertical base antenna
Frequency range / band(s):2 m - 1/2-wave
70 cm - 2*5/8-wave
Bandwidth:
Gain:2 m - 2.15 dBi
70 cm - 5.5 dBi
Beamwidth (-3 dB):Omni
G/T @ 30° elevation:-
Max power:60 W
Impedance / connector:50 ohm / PL-259 (M-plug)
Wind area:? m² (? ft²)
Max wind resistance:? m/sec (? mph)
Turning radius:-
Dimensions:Height: 1 m (3.28 ft)
Weight:130 g (4.59 oz)
Mast mount diameter:?-? mm (?-?")
Manufactured:198x-20xx
Additional info:
Related documents:
Reviews:
Options / Accessories:
- -
