Diamond NR-124N

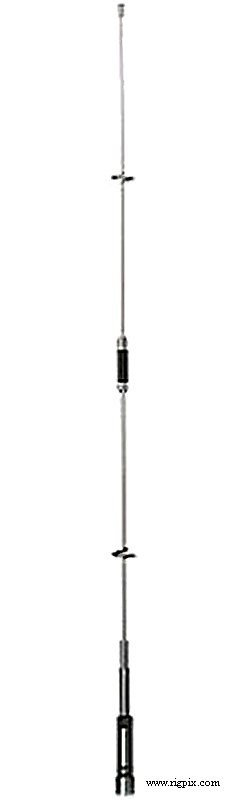

A picture of Diamond NR-124N

SPECIFICATIONS

Type:Amateur UHF mobile antenna
Frequency range / band(s):1260-1300 MHz (23 cm)
Bandwidth:40 MHz @ SWR <1.5
Gain:8.4 dBi - 4*5/8 wave
Beamwidth (-3 dB):Omni
G/T @ 30° elevation:-
Max power:50 W
Impedance / connector:50 ohm / N-male
Wind area:
Max wind resistance:
Turning radius:-
Dimensions:Length: 72 cm (2.36 ft)
Weight:130 g (4.59 oz)
Mast mount diameter:-
Manufactured:200x-20xx
Additional info:New price 2020 in the US: $56.95
Related documents:User manual (186 KB)
Reviews:
Options / Accessories:
- -
