Alinco DJ-X11E

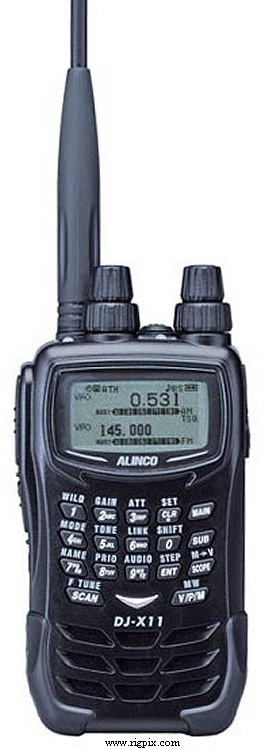

A picture of Alinco DJ-X11E

SPECIFICATIONS

GENERAL
Type:HF/VHF/UHF receiver/scanner
Frequency range: Europe (Except Greece)
0.05-1300 MHz
Tuning steps:50 / 100 Hz
1 / 5 / 6.25 / 8.33 / 9 / 10 / 12.5 / 15 / 20
25 / 30 / 50 / 100 / 125 / 150 / 200 / 500 KHz
Frequency stability:? ppm
Mode:AM / FM / WFM / SSB / CW
Channels / memory management: 1200 regular with alpha tags (8 characters)
50 scan edge pairs (Program scan)
100 dual band
100 priority
100 skip
Non-volatile EEPROM storage
Power supply:3.6-4.5 VDC (EDH-36 or EBP-74) or 5.4-6 VDC external
Current drain / power consumption:130-180 mA
Antenna impedance / connector:50 ohm / SMA
Dimensions (W*H*D):61*106*38 mm (2.4*4.17*1.5")
Weight:235 g (8.29 oz), with EBP-74 and antenna
Other features: CTCSS/PL and DCS tone scan and tone squelch. Frequency counter with
flash tune. Bug detector. Internal ferrite bar for AM-band reception. IQ signal
output that can be used with 3rd-party software to operate as a software
defined radio. 10.7 MHz IF output. Illuminated keypad. Voice inversion
de-scrambler. Channel scope. Attenuator. Cloning. Voice guidance.
PC programmable. Twin RX




RECEIVER SECTION
Receiver system: Double conversion superheterodyne
(AM/FM on sub VFO and WFM on main VFO)


Triple conversion superheterodyne
(AM/SSB/CW/FM on main VFO)

Sensitivity:

Main band

AM (10 dB S/N)
0.05-0.531 MHz: 1.78 uV
0.531-1.62 MHz: 1.25 uV
1.62-76 MHz: 0.56 uV
108-136 MHz: 0.5 uV
222-336 MHz: 1 uV
FM (12 dB SINAD)
1.62-76 MHz: 0.18 uV
136-174 MHz: 0.2 uV
336-476 MHz: 0.22 uV
770-1260 MHz: 0.35 uV
1260-1300 MHz: 0.5 uV
WFM (12 dB SINAD)
76-108 MHz: 0.71 uV
175-222 MHz: 0.5 uV
476-770 MHz: 0.22 uV
SSB (10 dB S/N)
1.62-76 MHz: 0.3 uV

Sub band

AM (10 dB S/N)
118-136 MHz: 0.71 uV
FM (12 dB SINAD)
136-170 MHz: 0.2 uV
336-470 MHz: 0.2 uV
Selectivity: AM/FM:
12 KHz (-6 dB)
35 KHz (-60 dB)
WFM:
180 KHz (-6 dB)
470 KHz (-20 dB)
SSB/CW:
2 KHz (-6 dB)
7.5 KHz (-50 dB)
Image rejection:
AF output power / speaker:100 mW at ?% distortion / 8 ohm
External speaker connector:




MISCELLANEOUS
Manufactured:Japan, 2010-202x
Additional info: New price 2010 in the UK: £339.00
New price, october 2022 in The Netherlands: 375.00 Euro
Related documents:User manual (14.8 MB)
Modifications and fixes:
Reviews:
Options / Accessories:
EA-154
EBC-23
EBP-74
EDC-139
EDC-140
EDC-174
EDH-33
EDH-36
EDS-12
EME-6
EME-26
ERW-4C
ERW-7
ERW-8
ESC-50
Whip antenna
Belt clip
Li-Ion battery pack. 3.7 V, 1800 mAh
AC adapter/charger (120 VAC)
AC adapter/charger (230 VAC)
Charger stand
Cigarette lighter cable
Battery case (Three LR6/AA batteries)
Remote controller
Miniature earphone
Spiral cord earphone
PC connection cable (RS-232C)
PC connection cable (3.5 mm to USB)
PC connection cable (Mini-USB to USB)
Soft case
