AKD 4001

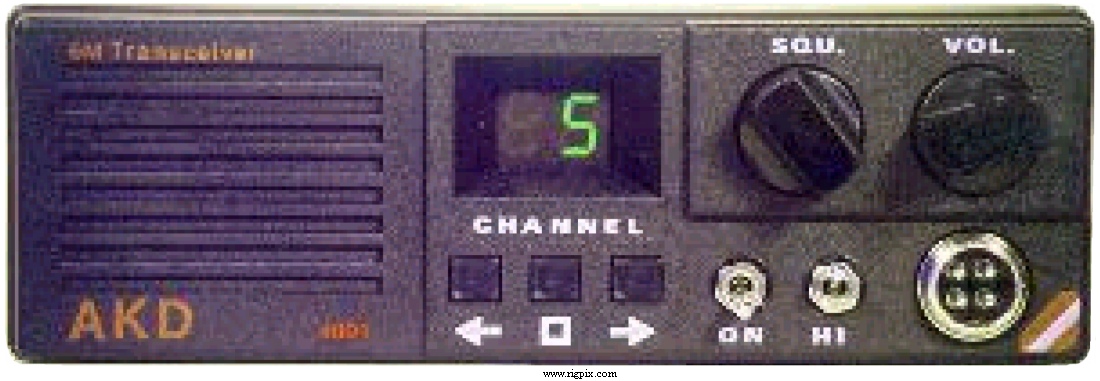

A picture of AKD 4001

SPECIFICATIONS

GENERAL
Type:Amateur VHF transceiver
Frequency range: TX: 70.250-70.4875 MHz
RX: 70.250-70.4875 MHz
Tuning steps:Channelized
Frequency stability:±? ppm
Mode:FM
Channels / memory management: 20 fixed, 12.5 KHz spacing
Repeater shift / offset:No
Power supply:13.8 VDC
Current drain / power consumption:RX: ? mA
TX: Max 3 A
Antenna impedance / connector:50 ohm / ?
Dimensions (W*H*D):185*60*200 mm (7.28*2.36*7.87")
Weight:825 g (1.82 lb)
Other features:




RECEIVER SECTION
Receiver system: Double conversion superheterodyne
1st IF: ? MHz
2nd IF: 455 KHz
Sensitivity:0.25 uV (12 dB SINAD)
Selectivity:
Image rejection:
AF output power / speaker:2 W at ?% distortion / ? ohm
External speaker connector:




TRANSMITTER SECTION
RF output power:

HighLow
4 m:25 W5 W
Modulation system:
Max FM deviation (Factory set):±4 KHz
Spurious emissions:Better than -? dB
Microphone impedance / connector:? ohm / 4-pin (Metal locking ring connector)
Microphone input level:? mV




MISCELLANEOUS
Manufactured:England, 199x-200x (Discontinued)
Additional info: New price, april 1999 in the UK: £193.74
New price 2000 in the UK: £195.00
Related documents:
Modifications and fixes:
Reviews:Practical Wireless: June 1992, page 21
Options / Accessories:
- -
