Icom RC-24

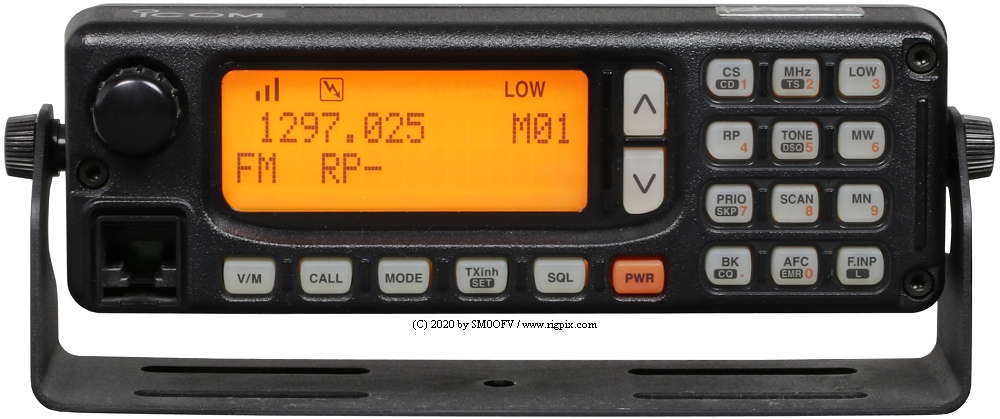

A picture of Icom RC-24

SPECIFICATIONS

Type:Remote controller unit
Power supply:8 VDC (Supplied by transceiver)
Current drain/power consumption:? mA
Dimensions (W*H*D):154*50*51 mm (6.06*1.97*2"), without mounting bracket
Weight:220 g (7.76 oz), without mounting bracket
Manufactured:Japan, 2002-200x (Discontinued)
Other:Plugs into the microphone jack on the ID-1 transceiver unit.
Related documents:
Modifications:
Reviews:
Applicable radios:ID-1

A rear picture of Icom RC-24
