Daiwa RX-430DX

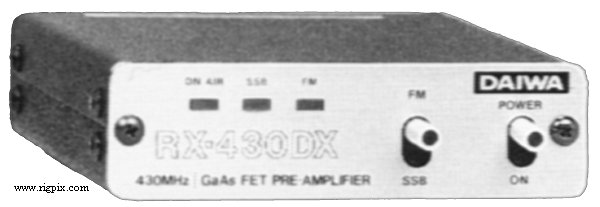

A picture of Daiwa RX-430DX
Type:UHF pre-amplifier
Frequency range:430-440 MHz
Gain:More than 13 dB
Voltage:13.8 VDC
Current drain:100 mA
Max feed through RF power:30 W
Impedance:50 ohms
Dimensions (W*H*D):90*25*92 mm (3.54*0.98*3.62")
Weight:? gr (? lbs)
Mast diameter:-
Manufactured:198x-198x (Discontinued)
Other:GaAs-FET. RF activated
Related documents:
Modifications:
