Mitsubishi Orphes MR-1

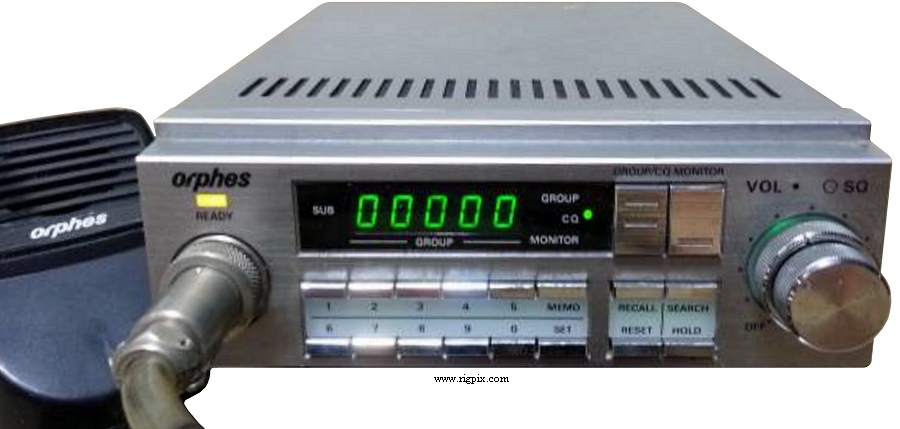

A picture of Mitsubishi Orphes MR-1

SPECIFICATIONS

GENERAL
Type:PRS 903/904 MHz transceiver - Japan
Frequency range:903.0125-904.9875 MHz
Channels/tuning steps:80
Mode:FM
Frequency control:PLL
Power supply:13.2 VDC
Current drain/power consumption:RX: ? mA
TX: Max 3 A
Antenna impedance/connector:50 ohm / N-jack
Dimensions (W*H*D):? mm (?")
Weight:? Kg (? lb)
Other features:




RECEIVER SECTION
Receiver system:Double conversion superheterodyne
1st IF: ? MHz
2nd IF: ? KHz
Sensitivity:
Selectivity:
Image rejection:
AF output power/speaker:? W at ?% distortion / ? ohm
External speaker connector:3.5 mm




TRANSMITTER SECTION
RF output power:5 W
Modulation system:
FM deviation:±5 KHz
Spurious emissions:Less than -? dB
Microphone impedance/connector:? ohm / 4-pin (Metal screw ring connector)




MISCELLANEOUS
Manufactured:Japan, 19xx-19xx (Discontinued)
Additional info:
Related documents:
Modifications:
Options/Accessories:
- -
A rear picture of Mitsubishi MR-1
